V2738 155 WHI 1/2 RES HSW K4.2 QR

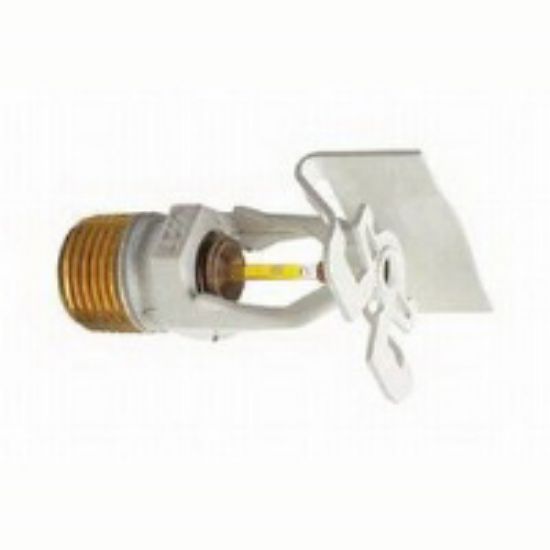

Victaulic FireLock V2738 White Painted Die-Cast Brass Frame Horizontal Sidewall Deflector Quick Response Residential Spray Sprinkler Head, 1/2 in. MNPT, 4.2 K-Factor, 155F

Manufacturer: Victaulic

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	2-3/4 in.
Coverage Area	320 sq-ft
Response Type	Quick
Material Specification	Deflector: UNS C51000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	155F
Wrench	V27-2 Recessed, V27 Open End
Working Pressure	7 psi
Hazard	Residential
K-Factor	4.2
Deflector Size	1-5/8 in. Width
Deflector Material	Bronze
Deflector Type	Horizontal Sidewall
Ambient Temperature Rating	100F
Bulb Material	Glass with Glycerin Solution
Element	3mm Red Bulb
Orifice Size	7/16 in.
Colour/Finish Name	White Painted
Specifications - UL Listed	Yes
Pressure - Maximum	175 psi
End Connection 1	MNPT
Fitting Size 1	1/2 in.
Material	Die-Cast Brass 65-30 Frame
