V3401 286 BRS 3/4 UPRT 8.0K STD

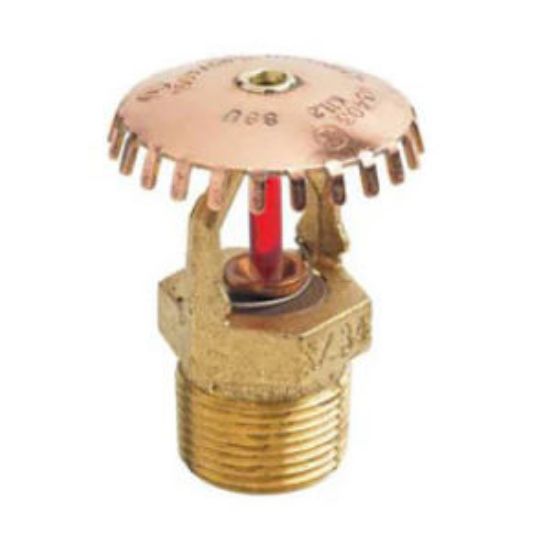

Victaulic FireLock V3401 Die-Cast Brass Frame Upright Deflector Standard Response Spray Sprinkler Head, 3/4 in. MNPT, 8 K-Factor, 286F

Manufacturer: Victaulic

$0.00

Qty:

FireLock Spray Sprinkler Head, Model: V3409, 2-15/16 in. Height, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 3/4 in., 8 K-Factor, 155F Maximum - Temperature, Pressure - Maximum: 175 psi, Specifications - UL Listed: Yes, 7 psi Working Pressure, 100% at 500 psi Factory Hydrostatic Test, 100F Ambient Temperature Rating, Deflector: UNS C22000 Material Specification, All Hazard, V34 Recessed and Open End Wrench, 17/32 in. Orifice Size, Horizontal Sidewall Deflector Type, Standard Response Type, 5mm Red Bulb Element, Glass with Glycerin Solution Bulb Material, Bronze Deflector Material, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Wrench	V34 Open End
Working Pressure	5 psi
Response Type	Standard
Material Specification	Deflector: UNS C11000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	286F
K-Factor	8
Hazard	All
Deflector Material	Bronze
Element	5mm Blue Bulb
Deflector Type	Upright
Deflector Size	1-7/16 in. Diameter
Ambient Temperature Rating	225F
Bulb Material	Glass with Glycerin Solution
Specifications - FM Approved	Yes
Orifice Size	17/32 in.
Colour/Finish Name	Brass
Specifications - UL Listed	Yes
Height	2-1/2 po
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	175 psi
End Connection 1	MNPT
Fitting Size 1	3/4 in.
