V3402 155 BRS 3/4 UPRT 8.0K QR

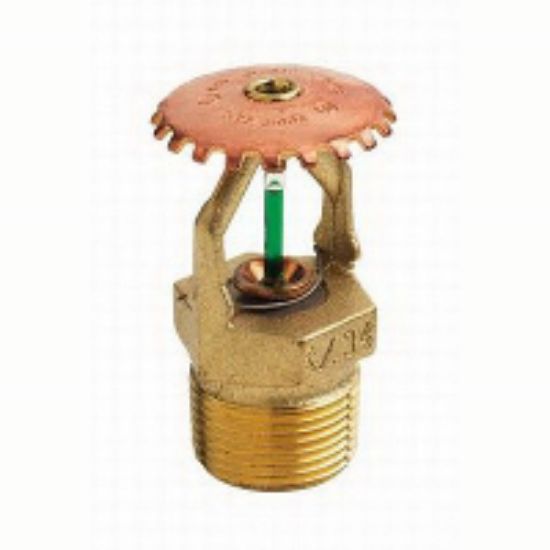

Victaulic FireLock V3402 Die-Cast Brass Frame Upright Deflector Quick Response Standard Spray Sprinkler Head, 3/4 in. MNPT, 8 K-Factor, 155F

Manufacturer: Victaulic

$0.00

Qty:

FireLock Standard Spray Sprinkler Head, Model: V3402, 2-1/2 in. Height, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 3/4 in., 8 K-Factor, 155F Maximum - Temperature, Pressure - Maximum: 175 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 5 psi Working Pressure, 100% at 500 psi Factory Hydrostatic Test, 100F Ambient Temperature Rating, Deflector: UNS C11000 Material Specification, All Hazard, V34 Open End Wrench, 17/32 in. Orifice Size, Upright Deflector Type, 1-7/16 in. Diameter Deflector Size, Quick Response Type, 3mm Red Bulb Element, Glass with Glycerin Solution Bulb Material, Bronze Deflector Material, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Element	3mm Red Bulb
Specifications - FM Approved	Yes
Orifice Size	17/32 in.
Fitting Size 1	3/4 in.
Wrench	V34 Open End
Working Pressure	5 psi
Response Type	Quick
Material Specification	Deflector: UNS C11000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	155F
K-Factor	8
Hazard	All
Deflector Material	Bronze
Deflector Type	Upright
Deflector Size	1-7/16 in. Diameter
Ambient Temperature Rating	100F
Bulb Material	Glass with Glycerin Solution
Colour/Finish Name	Brass
Specifications - UL Listed	Yes
Height	2-1/2 in.
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	175 psi
End Connection 1	MNPT
