V3403 286 BRS 3/4 UPRT 11.2K ELO STD

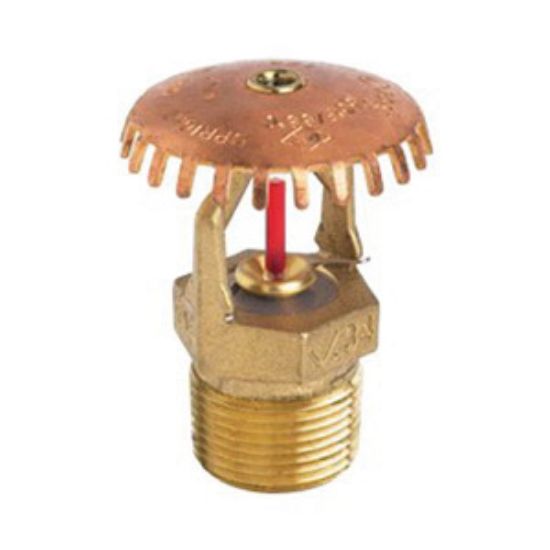

Victaulic FireLock V3403 Brass Die-Cast Brass Frame Upright Deflector Standard Response Spray Sprinkler Head, 3/4 in. MNPT, 11.2 K-Factor, 286F

Manufacturer: Victaulic

$0.00

Qty:

FireLock Sprinkler Head Guard, Model: V27, 2.56 in. Height, 13 ga Steel Wire, Fitting Size 1: 1/2 in., Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, Diameter: 4 in., Material Specification: UNS G10100

Products specifications

products.specs.attributename	products.specs.attributevalue
Element	5mm Blue Bulb
Specifications - FM Approved	Yes
Orifice Size	5/8 in.
Fitting Size 1	3/4 in.
Wrench	V34 Recessed and Open End
Working Pressure	7 psi for NFPA Application, 10 psi for FM Global Application
Response Type	Standard
Material Specification	Deflector: UNS C22000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	286F
K-Factor	11.2
Hazard	All
Deflector Material	Brass
Deflector Type	Upright
Deflector Size	1-13/16 in. Diameter
Ambient Temperature Rating	225F
Bulb Material	Glass with Glycerin Solution
Colour/Finish Name	Brass
Specifications - UL Listed	Yes
Height	2-1/2 in.
Material	Die-Cast Brass Frame
Pressure - Maximum	175 psi
End Connection 1	MNPT
