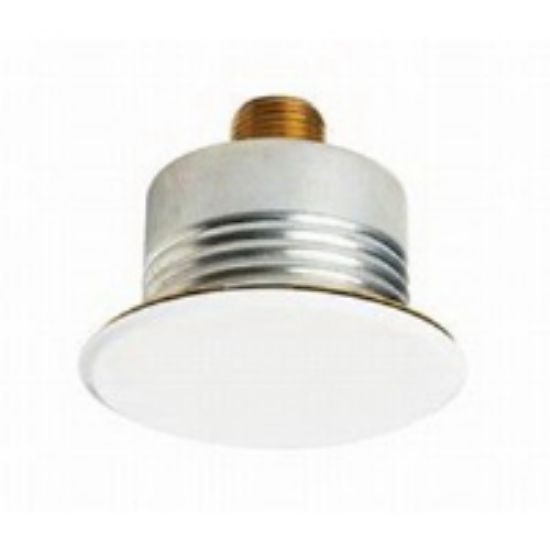

V3801 5.6K CONCEALED PEND 155

Victaulic FireLock V3801 Die-Cast Brass Frame Adjustable Concealed Pendent Deflector Standard Response Spray Sprinkler Head, 1/2 in. MNPT, 5.6 K-Factor, 155F

Manufacturer: Victaulic

$0.00

Qty:

FireLock Decorative Standard Spray Sprinkler Head, Model: V3801, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 1/2 in., 5.6 K-Factor, 155F Maximum - Temperature, Pressure - Maximum: 175 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 7 psi Working Pressure, 100% at 500 psi Factory Hydrostatic Test, 100F Ambient Temperature Rating, Deflector: UNS C22000 Material Specification, Light or Ordinary Hazard, V38-4 or V38-5 Recessed Wrench, 1/2 in. Orifice Size, Adjustable Concealed Pendent Deflector Type, Standard Response Type, 5mm Red Bulb Element, Glass with Glycerin Solution Bulb Material, Bronze Deflector Material, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Die-Cast Brass 65-30 Frame
Ambient Temperature Rating	100F
Bulb Material	Glass with Glycerin Solution
Colour/Finish Name	Brass
Deflector Material	Bronze
Deflector Type	Adjustable Concealed Pendent
Element	5mm Red Bulb
End Connection 1	MNPT
Factory Hydrostatic Test	100% at 500 psi
Fitting Size 1	1/2 in.
Hazard	Light or Ordinary
K-Factor	5.6
Material Specification	Deflector: UNS C22000
Maximum Temperature	155F
Orifice Size	1/2 in.
Pressure - Maximum	175 psi
Response Type	Standard
Specifications - FM Approved	Yes
Specifications - UL Listed	Yes
Working Pressure	7 psi
Wrench	V38-4 or V38-5 Recessed
