79690 LLC 1-1/2" P BZ ADAPTER FLANGE

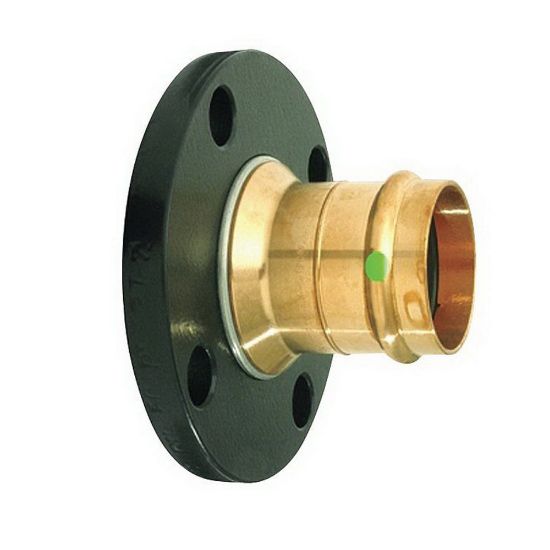

Viega ProPress 2959.5ZL 150# SCH Bronze 2-Piece Flange Adapter, 1-1/2 in. Press

Manufacturer: Viega

$0.00

Qty:

ProPress 2-Piece Flange Adapter, Model: 2959.5ZL, 3.07 in. Length, Material: Bronze, End Connection 1: Press, End Connection 2: Press, Fitting Size 1: 1-1/2 in., Fitting Size 2: 1-1/2 in., Maximum Temperature: 0 - 250F, Pressure - Maximum: 200 psi, Pressure Class: 150#, Specifications - ASME: ASME 16.5, Specifications - ASTM: ASTM B-88, 4.92 in. Flange Outside Diameter, 0.63 in. Flange Thickness, 0.63 in. Bolt Hole Diameter, 3.86 in. Bolt Circle Diameter, Domestic Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3.07 in.
Material	Bronze
Bolt Circle Diameter	3.86 in.
Bolt Hole Diameter	0.63 in.
End Connection 1	Press
End Connection 2	Press
Fitting Size 1	1-1/2 in.
Fitting Size 2	1-1/2 in.
Flange Outside Diameter	4.92 in.
Flange Thickness	0.63 in.
Maximum Temperature	0 - 250F
Pressure - Maximum	200 psi
Pressure Class	150#
Specifications - ASME	ASME 16.5
