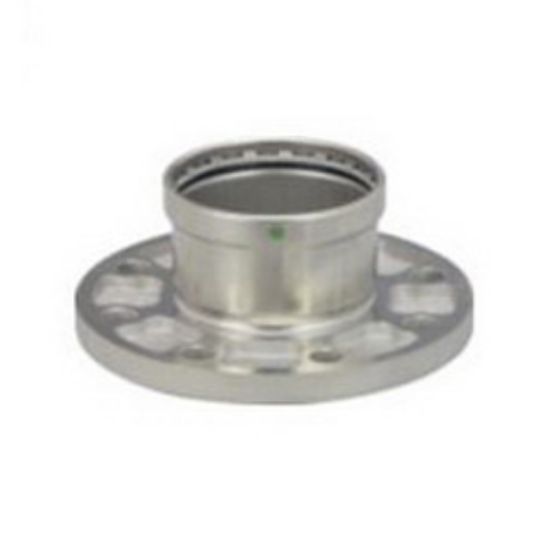

81065 2-1/2" P 316SS ADAPTER FLANGE

Viega ProPress 4059XL 150# 316 Stainless Steel Flange Adapter, 2-1/2 in., Press, 7.087 in. OD

Manufacturer: Viega

$0.00

Qty:

ProPress Flange Adapter, Model: 4059XL, 3.031 in. Height, Material: 316 Stainless Steel, End Connection 1: Press, End Connection 2: Press, Fitting Size 1: 2-1/2 in., Fitting Size 2: 2-1/2 in., Maximum Temperature: 0 - 250F, Pressure - Maximum: 200 psi, Pressure Class: 150#, Specifications - ASME: ASME B31.1, ASME B31.3, ASME B31.9, Specifications - ASTM: ASTM A-240, ASTM A-312, ASTM A-403, ASTM A-554, 7.087 in. Flange Outside Diameter, 5.512 in. Bolt Circle Diameter, 0.886 in. Thickness, 0.748 in. Bolt Hole

Products specifications

products.specs.attributename	products.specs.attributevalue
Specifications - ASME	ASME B31.1, ASME B31.3, ASME B31.9
Pressure - Maximum	200 psi
Maximum Temperature	0 - 250F
Material	Stainless Steel
Fitting Size 2	2-1/2 in.
Fitting Size 1	2-1/2 in.
End Connection 2	Press
End Connection 1	Press
Thickness	0.886 in.
Pressure Class	150#
Material Type	316 SS
Height	3.031 po
Flange Outside Diameter	7.087 in.
Bolt Circle Diameter	5.512 in.
