007-M2-QT 1-1/4" DBL CHECK VALVE

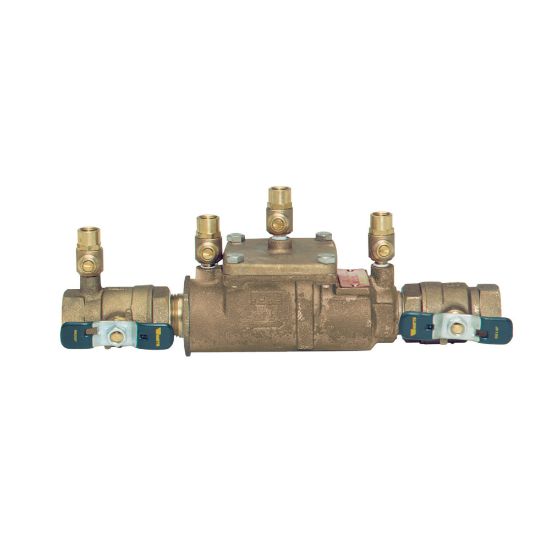

Watts 007M2-QT 1 1/4" Bronze Double Check Valve Assembly, Quarter Turn Shutoff, Single Top Entry

Manufacturer: Watts

$0.00

Qty:

Double Check Valve Backflow Prevention Assembly, Model: 007M2QT, 16-3/8 in. Length, 4.96 in. Width, 5 in. Height, Cast Bronze, End Connection 1: FNPT, Pressure - Maximum: 175 psi, End Connection 2: FNPT, Valve Size: 1-1/4 in., Rubber Seat Valve Disc, Maximum Temperature: 33 - 180F, Specifications - CSA Certified: CSA B64.5, Recommended Valve Application: Water, Specifications - ASSE Standards: ASSE 1015, Specifications - AWWA: AWWA C-510

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	16-3/8 in.
Width	4.96 in.
Height	5 po
Material	Cast Bronze
End Connection 1	FNPT
End Connection 2	FNPT
Maximum Temperature	33 - 180F
Pressure - Maximum	175 psi
Recommended Valve Application	Water
Specifications - ASSE Standards	ASSE 1015
Specifications - AWWA	AWWA C-510
Specifications - CSA Certified	CSA B64.5
Valve Disc Material	Rubber Seat
Valve Size	1-1/4 in.
