100XL 3/4" 100210 T&P RELIEF

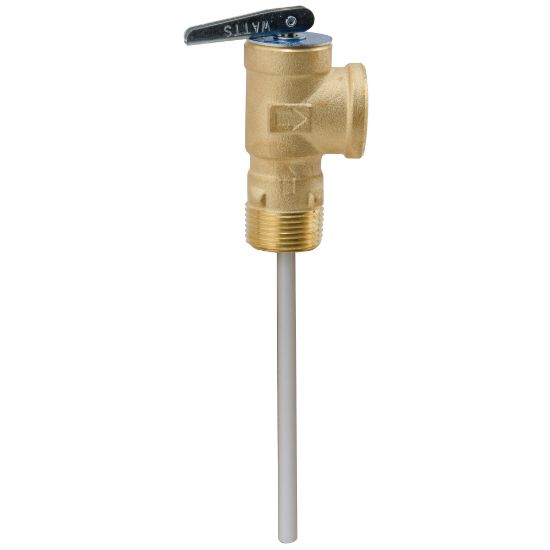

Watts 0066087 100XL Series 3/4 in. MNPT Brass 100 psi Self Closing Test Lever Temperature and Pressure Relief Valve with Extension Thermostat
Manufacturer: Watts
$0.00
This 3/4 in. temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. It is ASME rated and CSA listed. The temperature relief is at 210 degrees F (99 degrees C), and the pressure relief is 100 psi (7.0 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
Material Brass
Maximum Temperature 210
Pressure - Maximum 100 psi
Size 3/4 in.
Valve Size 3/4 in.
Valve Type Self Closing
Product Type Relief Valves
Height 7-3/4 in.
Length 2-1/2 in.
Specifications - ASME Yes
Specifications - CSA Certified Yes
Style Name 100XL Series
Weight 0.50 lb
Width 1-1/2 in.
Origin USA
End Connection FNPT x MNPT
End Connection 1 FNPT
End Connection 2 MNPT
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Valve Body Material Brass
