100XL-4-CAN 3/4" 125210 T&P RELIEF

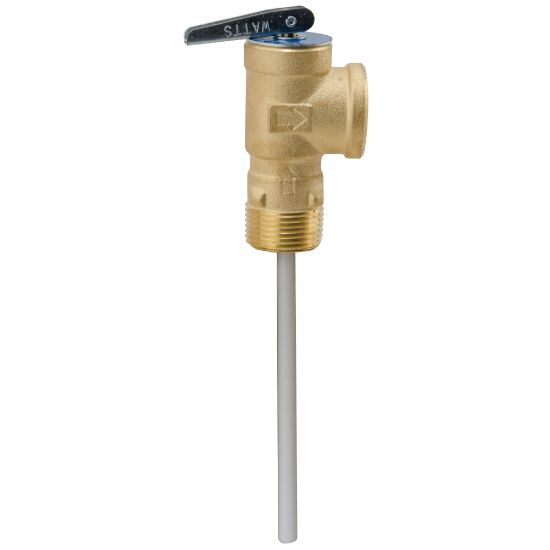

Watts 0066165 100XL Series 3/4 in. MNPT Brass 125 psi 210 Degree F Self Closing Test Lever Temperature and Pressure Relief Valve with Extension Thermostat
Manufacturer: Watts
$0.00
This 3/4 in. brass self closing temperature/pressure relief valve is used in a water heater or hot water storage tank application to provide automatic temperature and pressure protection. Temperature relief is at 210 degree F and pressure relief is 125 psi. It has a test lever and extension thermostat for installation in the hot water outlet or the tank tapping.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x MNPT
End Connection 1 FNPT
Height 1-5/32 in.
Length 3-11/64 in.
Maximum Temperature 210
Pressure - Maximum 125 psi
Specifications - ANSI ANSI Z21.22
Specifications - CSA Certified Yes
Style Name 100XL Series
Valve Seat Material Bronze
Valve Size 3/4 in.
Valve Type Self Closing
Weight 0.56 lb
Product Type Relief Valves
Valve Body Material Brass
Size 3/4 in.
Specifications - ASME Yes
Width 1-1/2 in.
Origin USA
End Connection 2 MNPT
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
