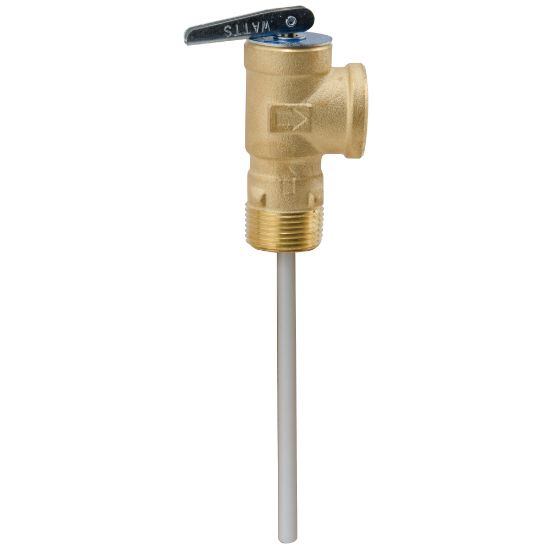

Picture of 100XL-4-CAN 3/4" 150210 T&P RELIEF

100XL-4-CAN 3/4" 150210 T&P RELIEF

Watts 0066166 100XL Series 3/4 in. FNPT x MNPT Brass 150 psi 210 Degree F Self Closing Temperature/Pressure Relief Valve with Extension Thermostat
Manufacturer: Watts
$0.00
This combined 2-in-1 temperature and pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions. It provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105,000 BTU/HR. This valve is furnished with a test lever and extension thermostat for installation in the hot water outlet line or directly in the tank tapping. The temperature sensing element must be immersed in the water within the top 6 in. (152mm) of the tank. It has a male inlet and a female outlet. Temperature relief is at 210 degrees F (99 degrees C). Standard settings are 75, 100, 125 and 150 psi (5.3, 7.0, 8.8, 10.6 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
Material Brass
Maximum Temperature 210
Pressure - Maximum 150 psi
Valve Size 3/4 in.
Valve Type Self Closing
Product Type Relief Valves
End Connection FNPT x MNPT
End Connection 1 FNPT
End Connection 2 MNPT
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Style Name 100XL Series
Valve Body Material Brass
