1170C-PEX-M2 1/2" PEX THERMOSTATI MIX

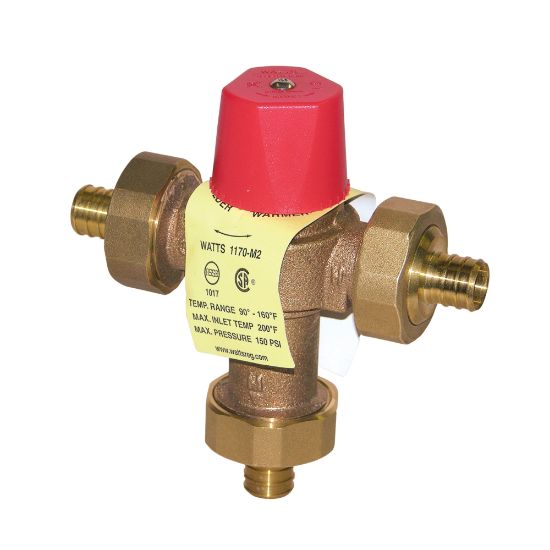

Watts 1170C-PEX-M2 1/2" Hot Water Temperature Control Valve, Crimp End Connections, Adjustable Out 90-120 F

Manufacturer: Watts

$0.00

Qty:

Hot Water Temperature Control Valve, 1170C Series, Model: 1170C-PEX-M2, 5-1/4 in. Length, 5-9/16 in. Height, Bronze, End Connection 1: PEX, Pressure - Maximum: 30 psi Minimum Supply Static, 150 psi Maximum, Flow Rate: 0.5 gpm, Valve Size: 1/2 in., Maximum Temperature: 120 - 200F Hot Inlet, 40 - 85F Cold Inlet, 5F Minimum Inlet Differential, 90 - 120F Outlet, 200F Maximum, Specifications - ASSE Standards: ASSE 1017

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-1/4 in.
Height	5-9/16 po
Material	Bronze
End Connection 1	PEX
Flow Rate	0.5 gpm
Maximum Temperature	120 - 200F Hot Inlet, 40 - 85F Cold Inlet, 5F Minimum Inlet Differential, 90 - 120F Outlet, 200F Maximum
Pressure - Maximum	30 psi Minimum Supply Static, 150 psi Maximum
Specifications - ASSE Standards	ASSE 1017
Valve Size	1/2 in.
