1170C-US-M2 1" SWT THERMOSTATIC MIX V

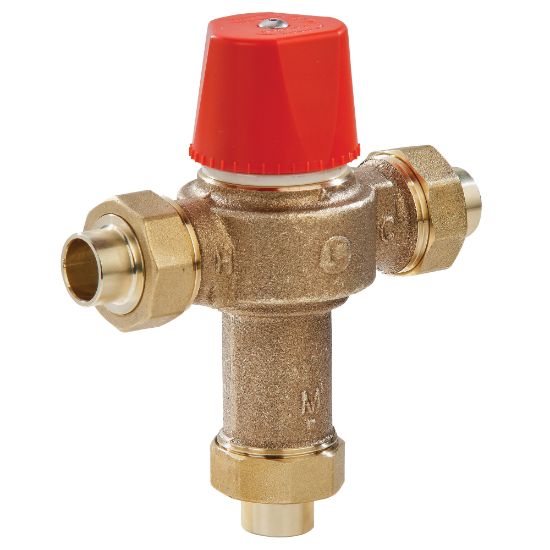

Watts 1170C-US-M2 1" Hot Water Temperature Control Valve, Solder Union End Connections, Adjustable Out 90-120 F

Manufacturer: Watts

$0.00

Qty:

Hot Water Temperature Control Valve, 1170C Series, Model: 1170C-US-M2, 5-13/16 in. Length, 5-7/8 in. Height, Bronze, End Connection 1: Union Solder, Pressure - Maximum: 30 psi Minimum Supply Static, 150 psi Maximum, Flow Rate: 0.5 gpm, Valve Size: 1 in., Maximum Temperature: 120 - 200F Hot Inlet, 40 - 85F Cold Inlet, 5F Minimum Inlet Differential, 90 - 120F Outlet, 200F Maximum, Specifications - ASSE Standards: ASSE 1017

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-13/16 in.
Height	5-7/8 po
Material	Bronze
End Connection 1	Union Solder
Flow Rate	0.5 gpm
Maximum Temperature	120 - 200F Hot Inlet, 40 - 85F Cold Inlet, 5F Minimum Inlet Differential, 90 - 120F Outlet, 200F Maximum
Pressure - Maximum	30 psi Minimum Supply Static, 150 psi Maximum
Specifications - ASSE Standards	ASSE 1017
Valve Size	1 in.
