Picture of 140X-5 3/4 150PSI 210F BZ TP REL VLV WFS

140X-5 3/4 150PSI 210F BZ TP REL VLV WFS

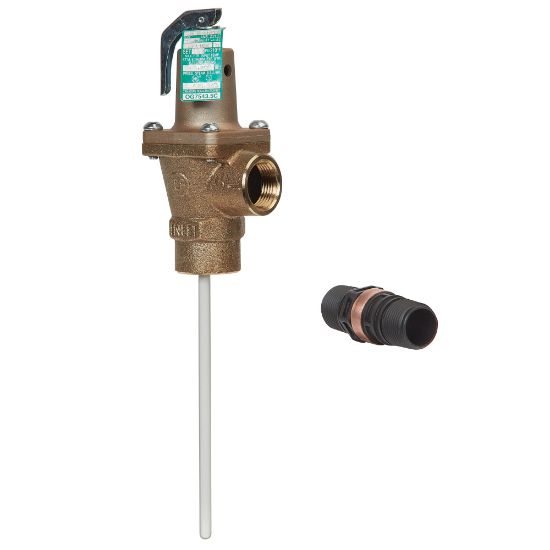

Watts F257564 140 Series 3/4 in. FNPT Bronze 150 psi 210 Degree F Automatic Reseating Temperature and Pressure Relief Valve with 5 in. Coated Thermostat and Discharge Line Flood Sensor
Manufacturer: Watts
$0.00
This automatic reseating temperature and pressure relief valve has a 3/4 in. NPTF female inlet, 3/4 in. NPTF female outlet, 5 in. coated extension thermostat, pressure relief setpoint of 150 psi, and temperature relief setpoint of 210 degrees F. The valve can be installed in hot water outlet within the allowable distance from the top of the tank for commercial applications to provide protection for hot water supply tanks and hot water heaters. It features a bronze body, tamper resistant bonnet screws, and test lever. Includes a nonrestrictive discharge drain line flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve. Sensor activation requires purchase of an activation kit which can be connected to existing building management systems or the Watts Cellular Gateway.
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Relief Valves
End Connection NPTF x NPTF
End Connection 1 NPTF
End Connection 2 NPTF
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Material Bronze
Maximum Temperature 210
Pressure - Maximum 150 psi
Specifications - UL Listed No
Style Name 140 Series
Valve Type Pressure Relief Valve
Valve Body Material Bronze
