C++ 140X-6 1" 125210 T&P RELIEF

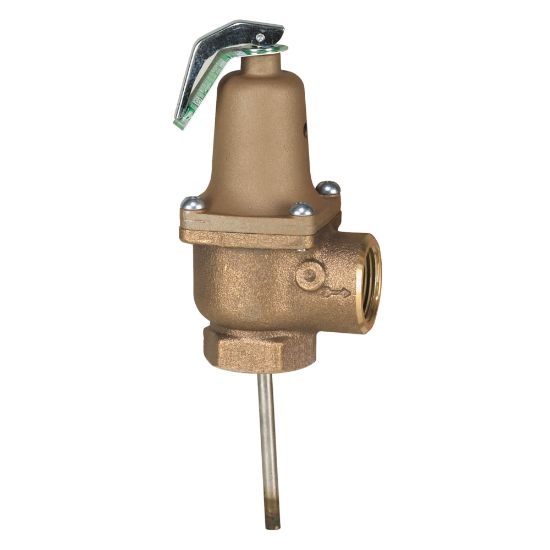

Watts 0259685 140 Series 1 in. FNPT Bronze 125 psi 210 Degree F Automatic Reseating Temperature and Pressure Relief Valve with 6 in. Thermostat
Manufacturer: Watts
$0.00
This 1 in. bronze automatic reseating temperature and pressure relief valve with a 6 in. thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 125 psi.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Fitting Size 1 1 in.
Fitting Sizes 1 in.
Height 5-3/4 in.
Material Bronze
Maximum Temperature 210
Pressure - Maximum 125 psi
Recommended Valve Application Water;Steam
Size 1 in. x 6 in.
Specifications - ANSI ANSI Z21.22
Specifications - ASME ASME Section IV
Valve Size 1 in.
Width 3 in.
Product Type Relief Valves
Length 3-3/8 in.
Style Name 140 Series
Valve Type Automatic Reseating
Weight 2.00 lb
Origin USA
Application Commercial
Valve Body Material Bronze
