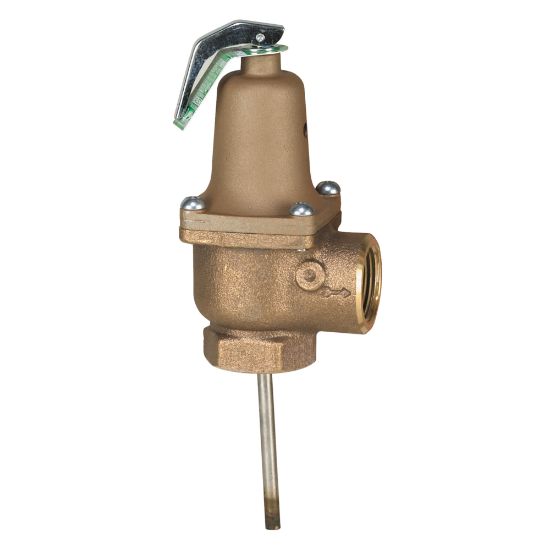

Picture of C++ 140X-6 1" 150210 T&P RELIEF VLV

C++ 140X-6 1" 150210 T&P RELIEF VLV

Watts 0259705 140 Series 1 in. FNPT x FNPT Bronze 150 psi 210 Degree F Automatic Reseating Temperature and Pressure Relief Valve with 6 in. Thermostat
Manufacturer: Watts
$0.00
This 1 in. bronze automatic reseating temperature and pressure relief valve with a 6 in. thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 150 psi.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Fitting Size 1 1 in.
Fitting Sizes 1 in.
Height 5-3/4 in.
Material Bronze
Maximum Temperature 210
Pressure - Maximum 150 psi
Recommended Valve Application Water;Steam
Size 1 in. x 6 in.
Specifications - ANSI ANSI Z21.22
Specifications - ASME ASME Section IV
Valve Size 1 in.
Width 3 in.
Product Type Relief Valves
Style Name 140 Series
Valve Type Temperature/Pressure
Application Commercial
Valve Body Material Bronze
