Picture of 1XL-4 CAN 1/2" 125210 T&P RELIEF

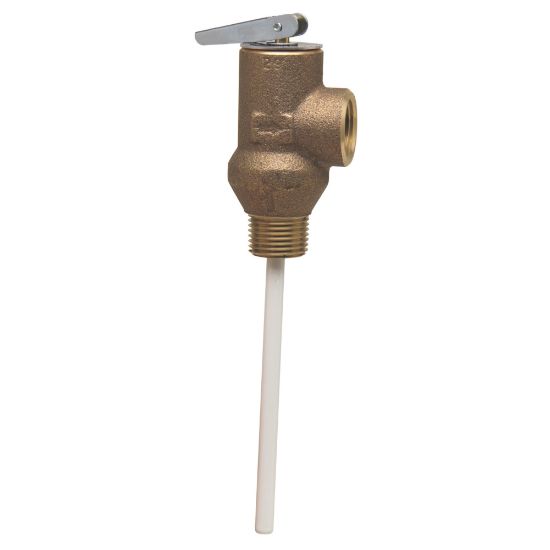

1XL-4 CAN 1/2" 125210 T&P RELIEF

Watts 0004614 1XL Series 1/2 in. FNPT x MNPT Bronze 125 psi 210 Degree F Self Closing Temperature and Pressure Relief Valve with Short Thermostat
Manufacturer: Watts
$0.00
This 1/2 in. temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 15,000 BTU per hour. This two in one relief valve provides the most proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a bronze body construction, NPT male inlet and NPT female outlet connections, a unique intended thermostat with special thermo-bonded coating and test lever. The temperature relief is 210 degrees F (99 degrees C) and pressure relief is set at 125 psi (8.8 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
Material Bronze
Maximum Temperature 210
Pressure - Maximum 125 psi
Size 1/2 in.
Valve Size 1/2 in.
Valve Type Self Closing
Product Type Relief Valves
End Connection FNPT x MNPT
End Connection 1 FNPT
End Connection 2 MNPT
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Style Name 1XL Series
Valve Body Material Bronze
