Picture of 1XL-4 CAN 1/2" 150210 T&P RELIEF VLV

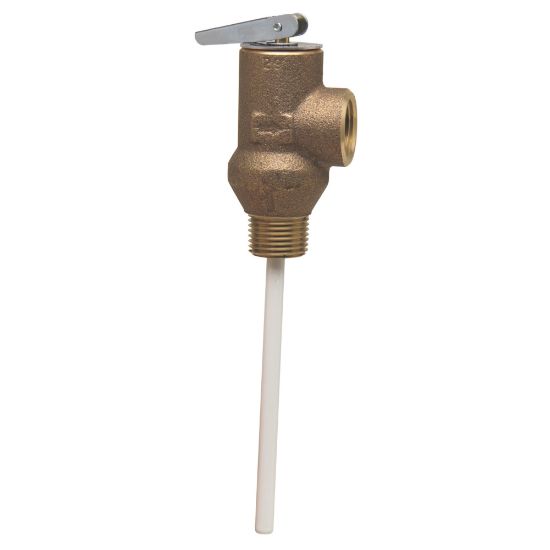

1XL-4 CAN 1/2" 150210 T&P RELIEF VLV

Watts 0004615 1XL Series 1/2 in. FNPT Bronze 150 psi 210 Degree F Self Closing Temperature and Pressure Relief Valve with 4 in. Extension Thermostat
Manufacturer: Watts
$0.00
This 1/2 in. temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 15,000 BTU per hour. This two in one relief valve provides the most proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a bronze body construction, NPT male inlet and NPT female outlet connections, a unique entended thermostat with special thermo-bonded coating and test lever. The temperature relief is 210 degrees (99 degrees C) and pressure relief is set at 150 psi (10.6 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x MNPT
End Connection 1 FNPT
Height 7-3/4 in.
Length 2-1/2 in.
Maximum Temperature 210
Pressure - Maximum 150 psi
Specifications - CSA Certified Yes
Style Name 1XL Series
Valve Size 1/2 in.
Valve Type Self Closing Temperature
Weight 0.70 lb
Product Type Relief Valves
Valve Body Material Bronze
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Material Bronze
Specifications - ASME Yes
Width 1-3/7 in.
Origin USA
End Connection 2 MNPT
