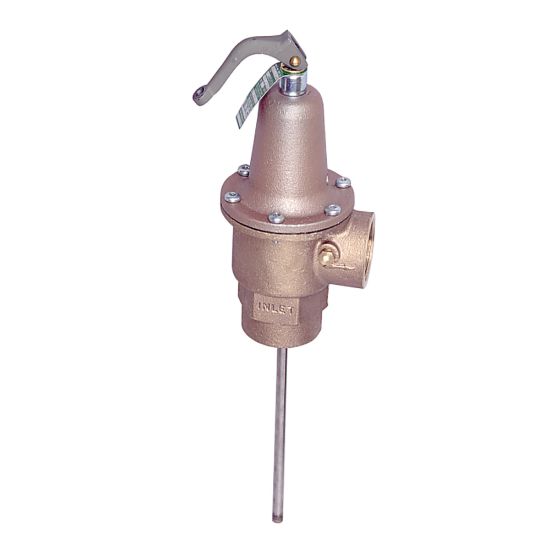

Picture of C++ 340-3 1-1/2" 125210 T&P RELIEF

C++ 340-3 1-1/2" 125210 T&P RELIEF

Watts 0344116 340 Series 1-1/2 in. x 3 in. FNPT x FNPT Bronze 125 psi 210 Degree F Automatic Reseating Temperature and Pressure Relief Valve with 3 in. Stainless Steel Thermostat
Manufacturer: Watts
$0.00
This 1-1/2 in. bronze automatic reseating temperature and pressure relief valve with a 3 in. thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 125 psi.
Products specifications
products.specs.attributename products.specs.attributevalue
Material Bronze
Pressure - Maximum 125 psi
Valve Type Automatic Reseating
Product Type Relief Valves
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Fitting Size 1 1-1/2 in.
Fitting Sizes 1-1/2 in.
Maximum Temperature 210
Style Name 340 Series
Valve Body Style Automatic Reseating
Valve Body Material Bronze
