340-3 1-1/2" 150210 T&P RELIEF VLV

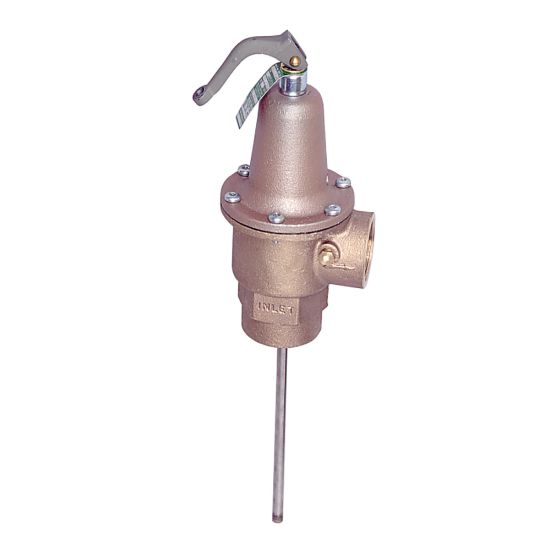

Watts 340 1 1/2" Bronze Automatic Reseating Temperature and Pressure Relief Valve, 150 psi, 210 degree F, Ss Thermostat

Manufacturer: Watts

$0.00

Qty:

Automatic Reseating Temperature and Pressure Relief Valve, 340 Series, Model: 340-3, 4-1/2 in. Width, 9-3/4 in. Height, Material: Bronze, End Connection 1: MNPT, End Connection 2: FNPT, Fitting Size 2: 1-1/2 in., Maximum Temperature: 210F, Pressure - Maximum: 150 psi, Recommended Valve Application: Water, Steam, Specifications - ANSI: ANSI Z21.22, Specifications - ASME: ASME Section IV, Valve Size: 1-1/2 in., 1150000 btu/hr CSA Temperature Steam Rating, ASME Pressure Steam Rating: 6379000 btu/hr

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	4-1/2 in.
Height	9-3/4 po
Material	Bronze
ASME Pressure Steam Rating	6379000 btu/hr
CSA Temperature Steam Rating	1150000 btu/hr
End Connection 1	MNPT
End Connection 2	FNPT
Fitting Size 2	1-1/2 in.
Maximum Temperature	210F
Pressure - Maximum	150 psi
Recommended Valve Application	Water, Steam
Specifications - ANSI	ANSI Z21.22
Specifications - ASME	ASME Section IV
Valve Size	1-1/2 in.
