Picture of C++ 374A 3/4" 030 BOILER PRES RELIEF VL

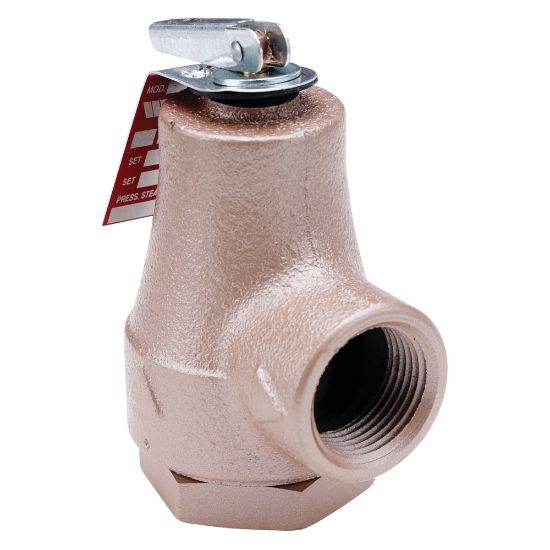

C++ 374A 3/4" 030 BOILER PRES RELIEF VL

Watts 0358553 374A Series 3/4 in. FNPT Forged Brass Iron 30 psi Boiler Pressure Relief Valve
Manufacturer: Watts
$0.00
This 3/4 in. pressure relief valve is used in hot water boiler applications to protect against excessive pressure on all types of hot water heating boiler equipment. It consists of a iron body with forged bronze inlet, non-metallic disc-to-metal seating and stainless steel spring. This valve resists corrosive water conditions, sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief and should not be used as an operating control. The pressure setting is 30 psi for applications up to 550,000 BTU/hr.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x FNPT
End Connection 1 FNPT
Height 3-1/2 in.
Length 2-1/2 in.
Maximum Temperature 250
Pressure - Maximum 30 psi
Style Name 374A Series
Valve Seat Material Nonmetallic Disc-to-Metal Seating
Valve Size 3/4 in.
Valve Type Pressure
Weight 1.20 lb
Application Hot Water Heating Boilers
Product Type Relief Valves
Valve Body Material Forged Brass Iron
End Connection 2 FNPT
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Specifications - UL Listed No
