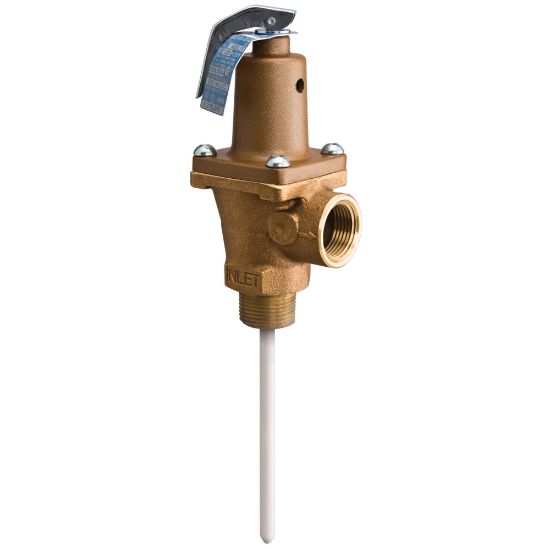

Picture of C++ 40XL-4 1" 100210 T&P RELIEF VLV

C++ 40XL-4 1" 100210 T&P RELIEF VLV

Watts 0163714 40XL Series 1 in. FNPT x MNPT Bronze 100 psi 210 Degree F Automatic Reseating Temperature and Pressure Relief Valve with 5 in. Thermostat
Manufacturer: Watts
$0.00
This 1 in. bronze automatic reseating temperature and pressure relief valve with a 5 in. thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees (99 degrees C) and the pressure relief is 100 psi.
Products specifications
products.specs.attributename products.specs.attributevalue
Material Bronze
Maximum Temperature 210
Pressure - Maximum 100 psi
Size 1 in.
Valve Size 1 in.
Valve Type Automatic Reseating
Product Type Relief Valves
End Connection FNPT x MNPT
End Connection 1 FNPT
End Connection 2 MNPT
Fitting Size 1 1 in.
Fitting Sizes 1 in.
Style Name 40XL Series
Application Commercial
Valve Body Material Bronze
