40XL-8 3/4" 100210 T&P RELIEF VLV

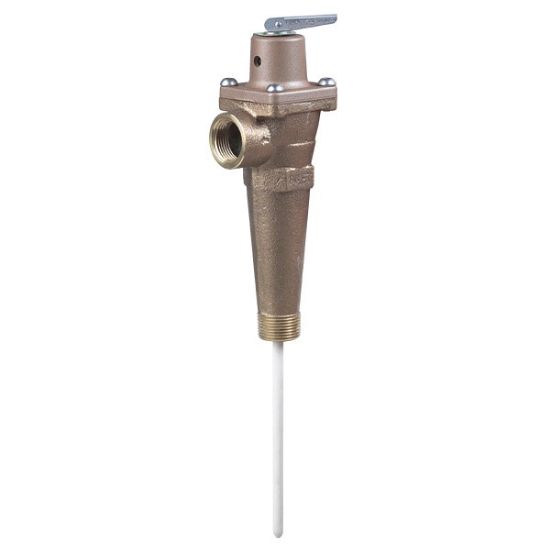

Watts 40XL-8 3/4" Bronze Automatic Reseating Temp and Pressure Relief Valve, 100 psi, 210 degree F, Test Lever, 8" Extension Thermostat

Manufacturer: Watts

$0.00

Qty:

Automatic Reseating Temperature and Pressure Relief Valve, 40XL Series, Model: 40XL-8, 2-5/8 in. Width, 5-5/8 in. Height, Material: Bronze, End Connection 1: MNPT, End Connection 2: FNPT, Fitting Size 2: 3/4 in., Maximum Temperature: 210F, Pressure - Maximum: 100 psi, Recommended Valve Application: Water, Steam, Specifications - ANSI: ANSI Z21.22, Specifications - ASME: ASME Section IV, Valve Size: 3/4 in., 205000 btu/hr CSA Temperature Steam Rating, ASME Pressure Steam Rating: 998000 btu/hr

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2-5/8 in.
Height	5-5/8 po
Material	Bronze
ASME Pressure Steam Rating	998000 btu/hr
CSA Temperature Steam Rating	205000 btu/hr
End Connection 1	MNPT
End Connection 2	FNPT
Fitting Size 2	3/4 in.
Maximum Temperature	210F
Pressure - Maximum	100 psi
Recommended Valve Application	Water, Steam
Specifications - ANSI	ANSI Z21.22
Specifications - ASME	ASME Section IV
Valve Size	3/4 in.
