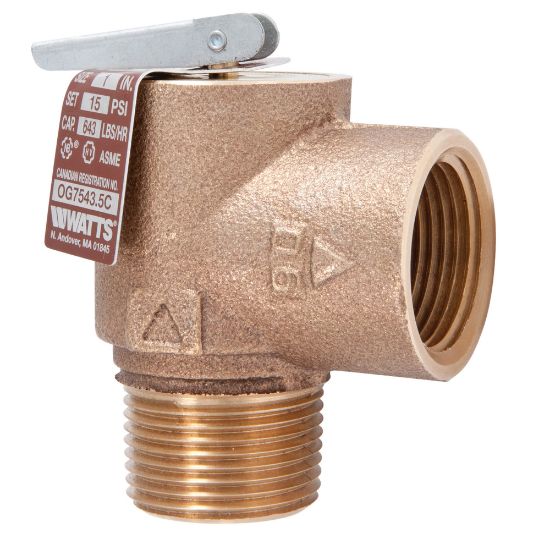

Picture of 415 1-1/2" 015 RELIEF VLV

415 1-1/2" 015 RELIEF VLV

Watts 0364200 415 Series 1-1/2 in. x 2 in. FNPT x MNPT Bronze 15 psi Steam Relief Valve
Manufacturer: Watts
$0.00
This 1-1/2 in. dependable, low cost, high capacity safety relief valve is designed for pressure cookers and steam cleaning equipment requirements used in low pressure applications. It features a bronze body, stainless steel spring, top guided stem, NPT threaded male inlet by threaded female outlet (drain) connection and a non-stick PTFE disc-to-metal seat to assure positive shutoff. The factory pressure setting for saturated steam service is set at 15 psi.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection 1 FNPT
End Connection 2 MNPT
Fitting Size 2 2 in.
Height 5-7/16 in.
Material Bronze
Pressure - Maximum 15 psi
Recommended Valve Application Steam
Specifications - ASME ASME Section IV
Valve Disc Material Non-Stick Teflon
Valve Seat Material Metal
Valve Size 1-1/2 in.
Product Type Relief Valves
End Connection FNPT x MNPT
Fitting Size 1 1-1/2 in.
Fitting Sizes 1-1/2 in. x 2 in.
Length 3-2/3 in.
Style Name 415 Series
Valve Type Pressure Relief Valve
Weight 3.98 lb
Width 3-1/2 in.
Application Commercial;Industrial
Origin USA
Valve Body Material Bronze
Maximum Temperature 250
Size 1-1/2 in.
