Picture of 5-3L CAN 1/2" 150 POPPET RELIEF VLV

5-3L CAN 1/2" 150 POPPET RELIEF VLV

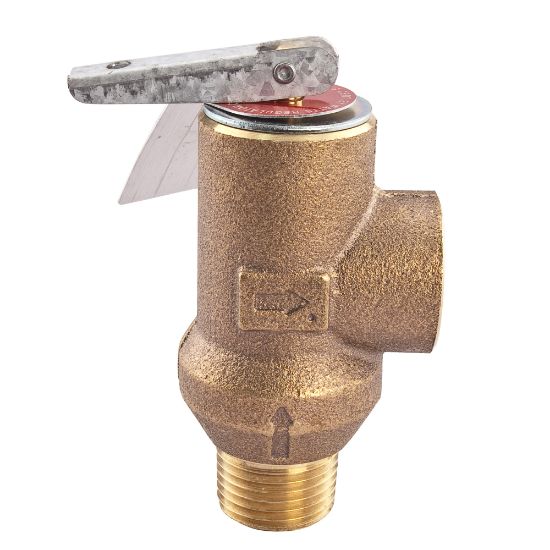

Watts 0004622 53L Series 1/2 in. FNPT x MNPT Bronze 150 psi Poppet Type Pressure Relief Valve, Test Lever
Manufacturer: Watts
$0.00
This 1/2 in. pressure relief valve is used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. It consists of a bronze body construction, 1/2 in. NPT threaded male inlet and 1/2 in. NPT threaded female (drain) outlet connections with Teflon tape applied to threads, test lever and stainless steel spring. It is ANSI Z21.22 approved, listed and certified by CSA. The pressure relief is set at 150 psi (10.3 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Relief Valves
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Height 3-3/4 in.
Length 2-1/5 in.
Material Bronze
Pressure - Maximum 150 psi
Style Name 53L Series
Valve Type Pressure Relief Valve
Weight 0.60 lb
Width 1-3/7 in.
Origin USA
End Connection FNPT x MNPT
End Connection 1 FNPT
End Connection 2 MNPT
Maximum Temperature 210
Size 1/2 in.
Specifications - ANSI ANSI Z21.22
Specifications - CSA Certified Yes
Specifications - UL Listed 1-UL Listed
Valve Size 1/2 in.
Valve Body Material Bronze
