740-CAN 3/4X1" 75PSI BOIL PRES RELF VLV

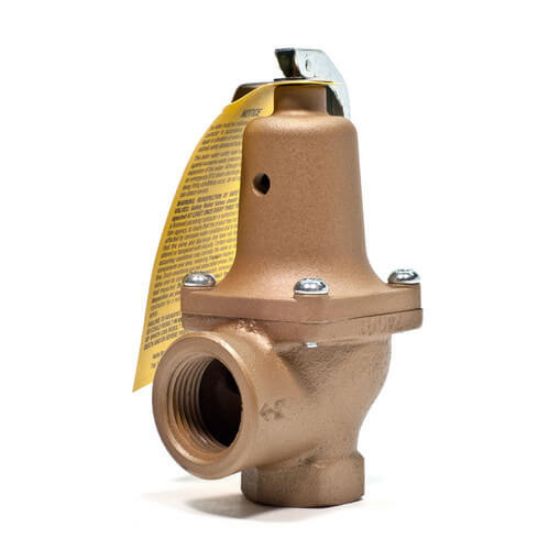

Watts 740 3/4" Iron Boiler Pressure Relief Valve, Set At 75 psi, Expanded Outlets
Manufacturer: Watts
$0.00
This Series 740 Boiler Pressure Relief Valve is used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water space heating boiler equipment. It consists of an iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc-to-metal seating, stainless steel spring, and test lever. It offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief and shall not be used as an operating control.
Products specifications
products.specs.attributename products.specs.attributevalue
Specifications - ASME Yes
Connection Type Threaded
Temperature Range 250 deg F Max
Thread Type Female
Material Iron
Outlet Size 1 in.
Inlet Size 3/4 in.
Capacity 1886000 BTU/hr
Pressure - Maximum 75 psi
