757-NRS 2-1/2" DBL CHECK VALVE

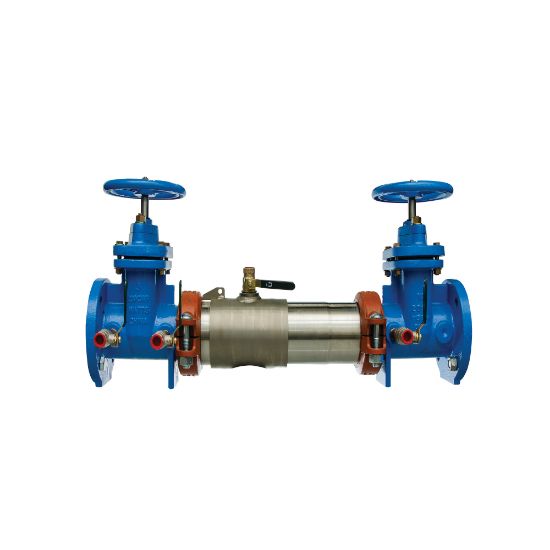

Watts 757-NRS 2 1/2" Ss Double Check Valve Assembly, Nrs Shutoff Valves

Manufacturer: Watts

$0.00

Qty:

Double Check Valve Assembly, 757 Series, Model: 757-NRS, 30-3/4 in. Length, 15-1/2 in. Width, 12-7/8 in. Height, Material: Stainless Steel, Lead Law Compliant: Yes, Maximum Temperature: 140F, Pressure - Maximum: 175 psi, Recommended Valve Application: Water, Specifications - ASSE Standards: ASSE 1015, Specifications - CSA Certified: CSA B64.5, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Valve Size: 2-1/2 in., Non-Rising Valve Stem, Gate Valve, Reversible Silicone or EPDM Valve Disc, Specifications - FM Approved: Yes, Material Type: 304 SS, 40 Schedule

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	30-3/4 in.
Width	15-1/2 in.
Height	12-7/8 po
Material	Stainless Steel
Lead Law Compliant	Yes
Material Type	304 SS
Maximum Temperature	140F
Pressure - Maximum	175 psi
Recommended Valve Application	Water
Schedule	40
Specifications - ASSE Standards	ASSE 1015
Specifications - CSA Certified	CSA B64.5
Specifications - FM Approved	Yes
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
Valve Disc Material	Reversible Silicone or EPDM
Valve Size	2-1/2 in.
Valve Stem	Non-Rising
Valve Type	Gate
