WAT757OSY3

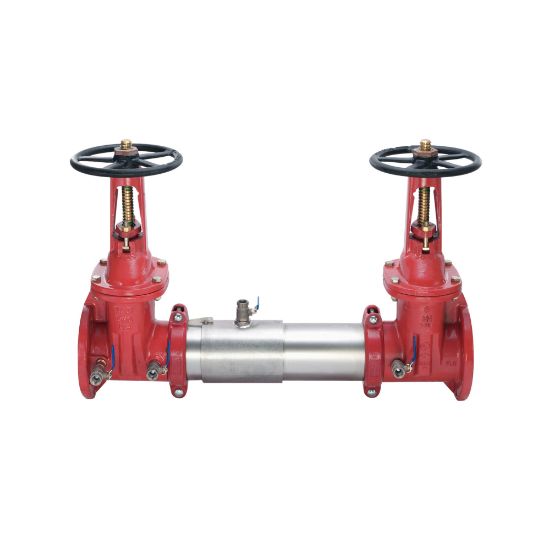

Watts 757-OSY 3" Ss Double Check Valve Assembly, Osy Shutoff Valves

Manufacturer: Watts

$0.00

Qty:

OSY Double Check Valve Backflow Prevention Assembly, Model: 757, 31-3/4 in. Length, 10-1/2 in. Width, 22-1/2 in. Height, Stainless Steel, End Connection 1: Flanged, End Connection 2: Flanged, Lead Law Compliant: Yes, Maximum Temperature: 140F, Pressure - Maximum: 175 psi, Recommended Valve Application: Water, Specifications - ASSE Standards: ASSE 1015, Specifications - CSA Certified: CSA B64.5, Specifications - NSF: NSF 61G, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Valve Size: 3 in., Reversible Silicone or EPDM Valve Disc, Specifications - FM Approved: Yes, Material Type: 304 SS, 40 Schedule

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	31-3/4 in.
Width	10-1/2 in.
Height	22-1/2 po
Material	Stainless Steel
End Connection 1	Flanged
End Connection 2	Flanged
Lead Law Compliant	Yes
Material Type	304 SS
Maximum Temperature	140F
Pressure - Maximum	175 psi
Recommended Valve Application	Water
Schedule	40
Specifications - ASSE Standards	ASSE 1015
Specifications - CSA Certified	CSA B64.5
Specifications - FM Approved	Yes
Specifications - NSF	NSF 61G
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
Valve Disc Material	Reversible Silicone or EPDM
Valve Size	3 in.
