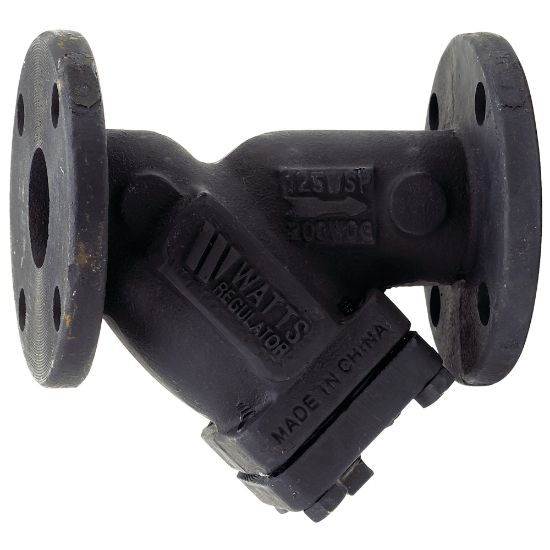

77F-DI-125 2-1/2" FLG Y STRAINER

Watts 0825201 77F-DI-125 Series Lead Free 2-1/2 in. x 1 in. x 2-1/2 in. Flanged Cast Iron Y Strainer with Grade E Gasket
Manufacturer: Watts
$0.00
This cast iron flanged wye pattern strainer 2-1/2 in. Watts model 77F-DI-125, has lead free class B cast iron body with 1/16 in. perforated screen, class 125 flanged connections, cast iron blowdown plug, stainless steel perforated screen, bolted and tapped iron retainer cap with graphite gasket and drain/blowoff connection furnished with a closure plug. Applicable for liquid and steam service to protect check valves, backflow preventers and similar controls from foreign matter. Maximum Pressure (non-shock) 200 psi (13.8 bar) at 210 degree F (99 degree C) WOG, 125 psi (8.6 bar) at 353 degree F (178 degree C) WSP.
Products specifications
products.specs.attributename products.specs.attributevalue
Coating Epoxy Coated
Depth 6-9/10 in.
End Connection Flanged Joint x Flanged Joint x Flanged
End Connection 1 Flanged Joint
End Connection 2 Flanged Joint
End Connection 3 Flanged
Fitting Size 1 2-1/2 in.
Fitting Size 2 1 in.
Fitting Sizes 2-1/2 in. x 1 in. x 2-1/2 in.
Height 9-9/10 in.
Lead Law Compliant Yes
Length 10 in.
Material Cast Iron;Graphite;Stainless Steel
Maximum Temperature 353
Minimum Temperature 32
Perforation Size 3/64 in.
Pressure - Maximum 200 psi
Pressure Class 125#
Specifications - ANSI ANSI B16.1
Specifications - ASTM ASTM A-126
Specifications - NSF NSF 372
Specifications - NSF Certified Yes
Style Name 77F-DI-125 Series
Valve Type Y Strainer
Weight 36.45 lb
Product Type Y Strainers
Size 2-1/2 in.
Width 6-4/5 in.
Origin Canada
Valve Body Material Cast iron
Strainer Type Wye
Mesh Size 20
