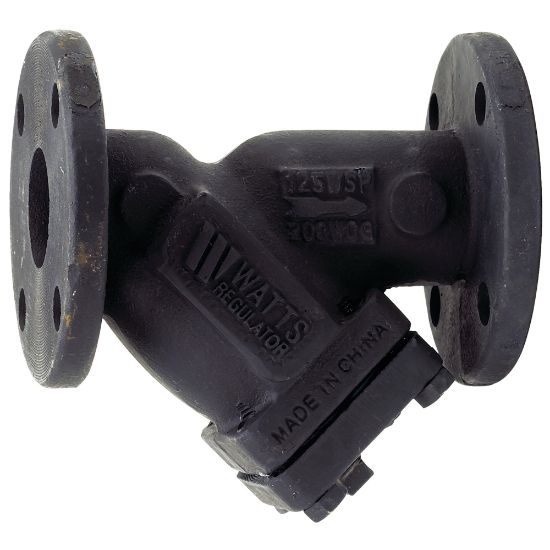

77F-DI-125 4" FLG Y STRAINER

Watts 0825203 77F-DI-125 Series Lead Free 4 in. x 1-1/2 in. x 4 in. Female Threaded x Flanged x Flanged Cast Iron Wye Strainer
Manufacturer: Watts
$0.00
This Cast Iron Flanged Wye Pattern Strainer, 4 in. Watts Model 77F-DI-125, has 304 stainless steel perforated screens, a cast iron flanged retainer cap and a drain/blow off connection furnished with a closure plug.
Products specifications
products.specs.attributename products.specs.attributevalue
Coating Epoxy Coated
Depth 13-1/2 in.
End Connection Female Threaded x Flanged x Flanged
End Connection 1 Female Threaded
End Connection 2 Flanged
End Connection 3 Flanged
Fitting Size 1 4 in.
Fitting Size 2 1-1/2 in.
Fitting Sizes 4 in. x 1-1/2 in. x 4 in.
Height 8-1/4 in.
Lead Law Compliant Yes
Length 12-1/8 in.
Material Cast Iron;Graphite;Stainless Steel
Maximum Temperature 353
Minimum Temperature 32
Perforation Size 1/16 in.
Pressure - Maximum 200 psi
Pressure Class 125#
Specifications - ANSI ANSI B16.1
Specifications - ASTM ASTM A-126
Specifications - NSF NSF 372
Specifications - NSF Certified Yes
Style Name 77F-DI-125 Series
Valve Type Y Strainer
Weight 64.00 lb
Product Type Y Strainers
Size 4 in.
Width 10 in.
Origin Canada
Valve Body Material Cast iron
Specifications - UL Listed No
Valve Size 4 in.
Strainer Type Wye
Mesh Size 20
