77F-DI-FDA-125 3" FLG Y STRNR FDA APPRVL

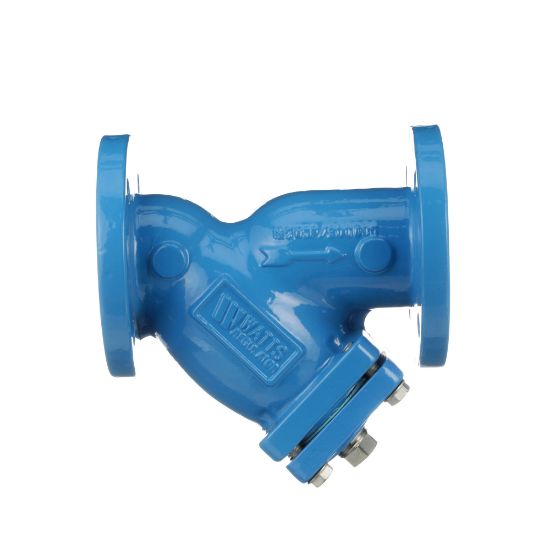

Watts 0825211 77F-DI-FDA-125 Series Lead Free 3 in. x 3 in. x 1 in. Flanged Joint x Flanged Joint x Flanged Cast Iron 20 Mesh Wye Pattern Strainer, Tapped Retainer Cap, Closure Plug, Epoxy Coated
Manufacturer: Watts
$0.00
This Cast Iron Flanged Wye Pattern Strainer, 3 in. Watts Model 77F-DI-FDA-125, has 304 stainless steel perforated screens, a cast iron flanged retainer cap and a drain blow off connection furnished with a closure plug. The strainer also features a double coated, heat fused epoxy coating on the interior and exterior for FDA approved sanitary applications.
Products specifications
products.specs.attributename products.specs.attributevalue
Coating Epoxy Coated
Depth 12-3/10 in.
End Connection Flanged Joint x Flanged Joint x Flanged
End Connection 1 Flanged Joint
End Connection 2 Flanged Joint
End Connection 3 Flanged
Fitting Size 1 3 in.
Fitting Size 2 3 in.
Fitting Sizes 3 in. x 3 in. x 1 in.
Height 7 in.
Lead Law Compliant Yes
Length 10-1/8 in.
Material Cast Iron;Graphite;Stainless Steel
Maximum Temperature 353
Minimum Temperature 32
Perforation Size 1/16 in.
Pressure - Maximum 200 psi
Pressure Class 125#
Specifications - ANSI ANSI B16.1
Specifications - ASTM ASTM A-126
Specifications - NSF NSF 372
Specifications - NSF Certified Yes
Style Name 77F-DI-FDA-125 Series
Valve Type Y Strainer
Weight 37.50 lb
Product Type Y Strainers
Size 3 in.
Width 12 in.
Origin Canada
Valve Body Material Cast iron
Strainer Type Wye
Mesh Size 20
