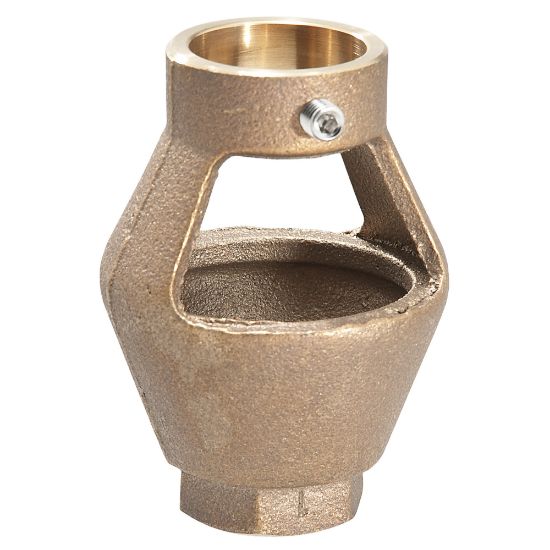

909-AG-A AIR GAP 1/2 009- 3/4 009M2/M3

Watts 0881399 Air Gap For Series 009, 009M2, 009M3 and 995 1/2 in. x 1 in. Reduced Pressure Zone Assembly Backflow Preventers
Manufacturer: Watts
$0.00
This air gap for reduced pressure zone assembly, 1/2 in. series 009, 3/4 in. series 009M2 and 009M3, and 1/2 in. to 1 in. series 995, provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).
Products specifications
products.specs.attributename products.specs.attributevalue
Brand/Model Compatibility Series 009, 009M2, 009M3 and 995 Reduced Pressure Zone Assembly Backflow Preventers
Coating Durable
Depth 2-22/25 in.
Diameter 2-3/8 in.
End Connection NPT x NPT
End Connection 1 NPT
End Connection 2 NPT
Height 3-1/8 in.
Length 2-3/8 in.
Material Bronze
Recommended Valve Application Water
Specifications - ASME ASME A112.1.2
Valve Size 1/2 in. - 1 in.
Valve Type Air Gap
Product Type Backflow Preventer Accessories
Weight 0.60 lb
Width 2-1/2 in.
Origin Taiwan
Valve Body Material Metal
Installation Type Vertical;Horizontal
