WAT957OSY10

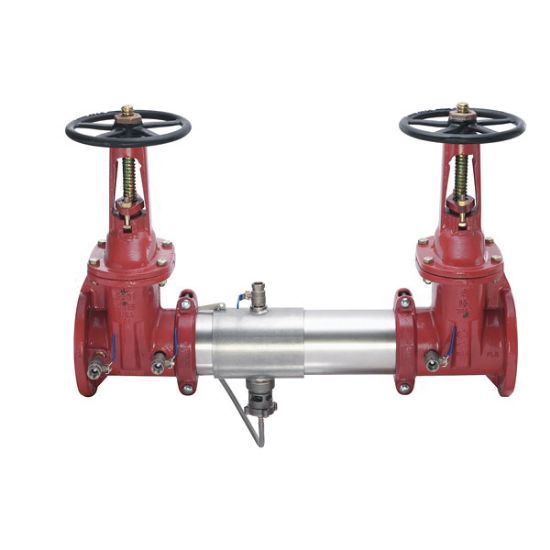

Watts 957-OSY Lead Free 304 Stainless Steel Reduced Pressure Zone Assembly, 10 in. Grooved

Manufacturer: Watts

$0.00

Qty:

Reduced Pressure Zone Assembly, 957 Series, Model: 957-OSY, 66 in. Length, 32-1/2 in. Width, 56-15/16 in. Height, Material: Stainless Steel, End Connection 1: Grooved, End Connection 2: Grooved, Lead Law Compliant: Yes, Maximum Temperature: 140F, Pressure - Maximum: 175 psi, Recommended Valve Application: Water, Specifications - ANSI: ANSI 61-G, Specifications - ASSE Standards: ASSE 1013, Specifications - CSA Certified: CSA B64.4, Specifications - NSF: NSF 372, 31, 61-9 or 61/9 or 61.9, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Valve Size: 10 in., Gate Valve, Reversible Silicone or EPDM Valve Disc, Specifications - FM Approved: Yes, Material Type: 304 SS, 40 Schedule

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	66 in.
Width	32-1/2 in.
Height	56-15/16 in.
Material	Stainless Steel
End Connection 1	Grooved
End Connection 2	Grooved
Lead Law Compliant	Yes
Material Type	304 SS
Maximum Temperature	140F
Pressure - Maximum	175 psi
Recommended Valve Application	Water
Schedule	40
Specifications - ANSI	ANSI 61-G
Specifications - ASSE Standards	ASSE 1013
Specifications - CSA Certified	CSA B64.4
Specifications - FM Approved	Yes
Specifications - NSF	NSF 372, 31, 61-9 or 61/9 or 61.9
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
Valve Disc Material	Reversible Silicone or EPDM
Valve Size	10 in.
Valve Type	Gate
