Picture of BP30C 1/2" 75-175 BYPASS CTRL VALVE

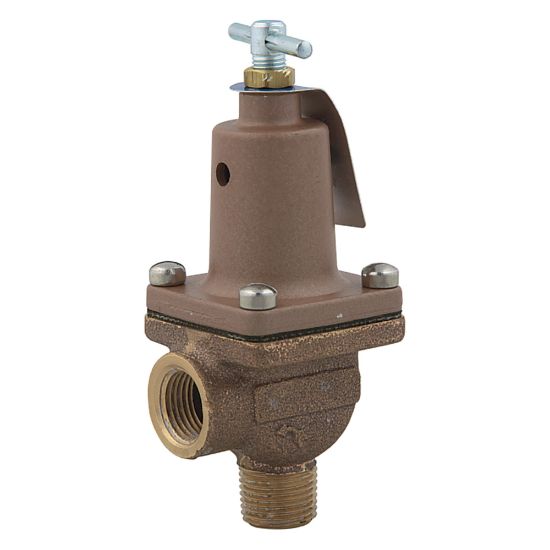

BP30C 1/2" 75-175 BYPASS CTRL VALVE

Watts 0114241 BP30 Series 1/2 in. Bronze 75 psi to 175 psi Diaphragm Operated Bypass Control Relief Valve
Manufacturer: Watts
$0.00
This 1/2 in. bypass control relief valve is used in commercial, residential and industrial applications to regulate liquid pressure as supplied by a positive pressure pump. It is a diaphragm-operated type valve that protects equipment by opening at an adjustable range of 75-175 psi (5.2 to 12.1 bar) to allow excess volume to be bypassed back to the source. It consists of a bronze body construction with NPT threaded male inlet and NPT threaded female outlet, sensitive rubber diaphragm, Buna-N disc, spring and adjustment handle, and a tee handle.
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Relief Valves
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Height 5-3/4 in.
Length 2-1/2 in.
Material Bronze
Pressure - Maximum 175 psi
Style Name BP30 Series
Valve Type Diaphragm
Weight 1.25 lb
Width 2-1/4 in.
Origin USA
Valve Body Material Bronze
End Connection FPT x MNPT
End Connection 1 FPT
End Connection 2 MNPT
Maximum Temperature 180
Application Commercial;Residential
