Picture of L100XL-3 3/4" 150210 T&P RELIEF VLV

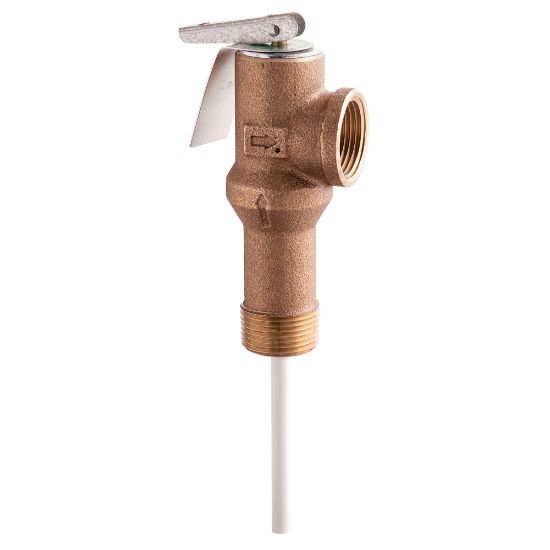

L100XL-3 3/4" 150210 T&P RELIEF VLV

Watts 0066133 100XL Series 3/4 in. FNPT Brass 150 psi 210 Degree F Self Closing Temperature and Pressure Relief Valve
Manufacturer: Watts
$0.00
This 3/4 in. extended shank temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features an extended shank for installation on water heaters with extra thick insulation as well as a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. It is suitable for water heaters with up to 2 in. (50.8 mm) of insulation. It is ASME rated and CSA listed. The temperature relief is 210 F (99 C), the pressure relief range is 75 to 150 psi (5.2 to 10.3 bars) and the standard pressure setting is 150 psi (10.55 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x MNPT
End Connection 1 FNPT
End Connection 2 MNPT
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Height 4-5/16 in.
Length 7-1/4 in.
Material Brass
Maximum Temperature 210
Pressure - Maximum 150 psi
Recommended Valve Application Water
Specifications - ANSI ANSI Z21.22
Valve Operator Test Lever Handle
Valve Size 3/4 in.
Valve Type Self Closing
Width 1-7/8 in.
Product Type Relief Valves
Size 3/4 in.
Style Name 100XL Series
Weight 0.60 lb
Origin USA
Valve Body Material Bronze
