WATLF007M1QT2

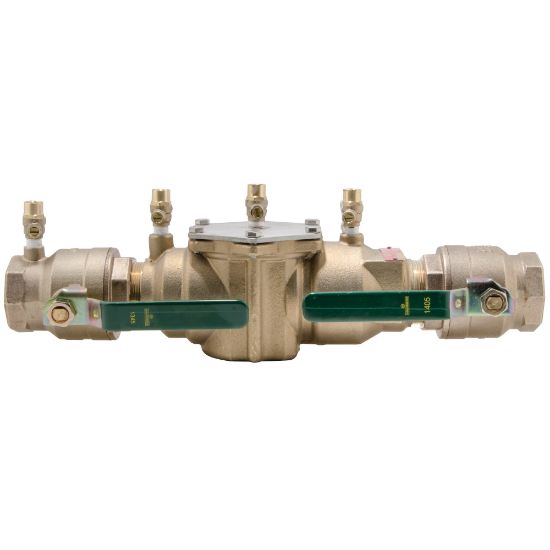

Watts LF007M1-QT 2" Lead Free Double Check Valve Assembly, Quarter Turn Shutoff, Single Top Entry

Manufacturer: Watts

$0.00

Qty:

Double Check Valve Backflow Prevention Assembly, Model: LF007M1QT, 19-1/2 in. Length, 6.1 in. Width, 6-1/4 in. Height, Cast Copper Silicon Alloy, End Connection 1: FNPT, Pressure - Maximum: 175 psi, End Connection 2: FNPT, Valve Size: 2 in., Rubber Seat Valve Disc, Maximum Temperature: 33 - 180F, Specifications - CSA Certified: CSA B64.5, Recommended Valve Application: Water, Lead Law Compliant: Yes, Specifications - ASSE Standards: ASSE 1015, Specifications - AWWA: AWWA C-510

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	19-1/2 in.
Width	6.1 in.
Height	6-1/4 po
Material	Cast Copper Silicon Alloy
End Connection 1	FNPT
End Connection 2	FNPT
Lead Law Compliant	Yes
Maximum Temperature	33 - 180F
Pressure - Maximum	175 psi
Recommended Valve Application	Water
Specifications - ASSE Standards	ASSE 1015
Specifications - AWWA	AWWA C-510
Specifications - CSA Certified	CSA B64.5
Valve Disc Material	Rubber Seat
Valve Size	2 in.
