Picture of LF100XL-CAN-125210 LLC 3/4" T&P RELF VLV

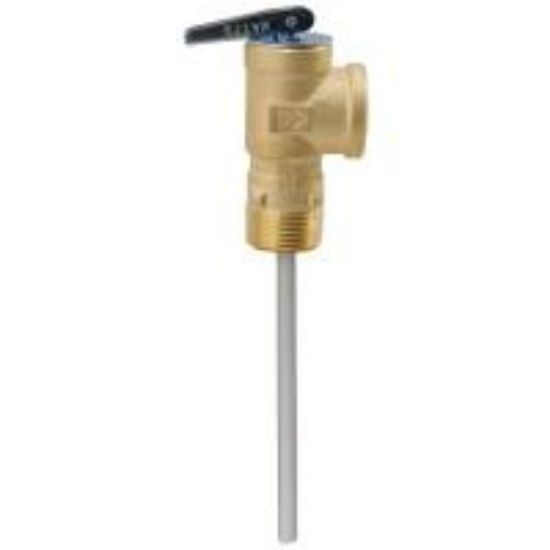

LF100XL-CAN-125210 LLC 3/4" T&P RELF VLV

Watts 0558108 LF100XL Series Lead Free 3/4 in. FPT x MNPT Copper Alloy 125 psi 210 Degree F Self Closing Temperature and Pressure Relief Valve with Extension Thermostat
Manufacturer: Watts
$0.00
This 3/4 in. lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU per hour. This two in one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 125 psi (8.8 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FPT x MNPT
End Connection 1 FPT
End Connection 2 MNPT
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Height 3-11/64 in.
Lead Law Compliant Yes
Length 7-1/6 in.
Material Copper Alloy
Maximum Temperature 210
Pressure - Maximum 125 psi
Recommended Valve Application Water
Size 3/4 in.
Specifications - ANSI ANSI Z21.22
Valve Operator Test Lever Handle
Valve Size 3/4 in.
Valve Type Self Closing
Width 1-5/32 in.
Product Type Relief Valves
Specifications - ASME Yes
Specifications - CSA Certified Yes
Style Name LF100XL Series
Weight 0.56 lb
Origin USA
Valve Body Material Copper Alloy
