Picture of LF1170-M2-PEX LLC 1/2" PEX THERM MIX VLV

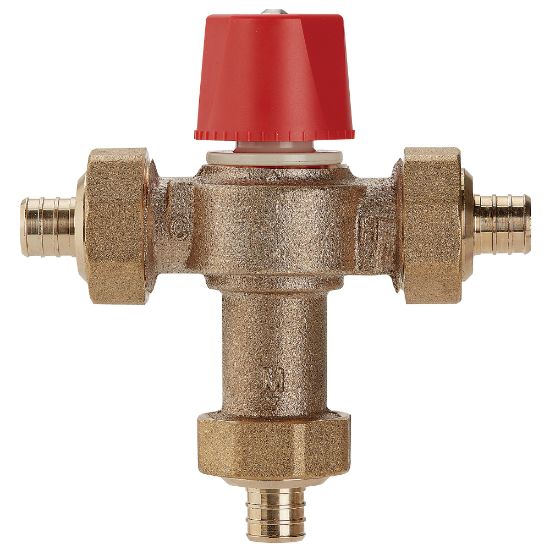

LF1170-M2-PEX LLC 1/2" PEX THERM MIX VLV

Watts 0559143 LF1170 Series Lead Free 1/2 in. Crimp Hot Water Temperature Control Valve
Manufacturer: Watts
$0.00
This 1/2 in. lead free hot water control valve is designed for installation on water heating equipment to provide tempered water to point-of-use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead free brass body, crimp end connections for PEX tubing, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shutoff upon loss of cold water supply, and a locking mechanism for the temperature setting. The maximum pressure is 150 psi (10.3 bar). The adjustable field range temperature is 90 to 160 degrees F (32 to 71 degrees C).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Crimped x Crimped
End Connection 1 Crimped
End Connection 2 Crimped
Lead Law Compliant Yes
Size 1/2 in.
Valve Size 1/2 in.
Product Type Mixing Valves
Valve Trim Type Temperature
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Height 2-5/8 in.
Length 6-1/3 in.
Material Brass
Specifications - ASSE Standards ASSE 1017
Specifications - CSA Certified CSA B125
Specifications - IAPMO Listed Yes
Style Name LF1170 Series
Valve Type Temperature Control Valve
Weight 2.00 lb
Width 4-1/2 in.
cUPC Certified Yes
Origin USA
ADA Compliant No
Capacity 23 gpm
Maximum Temperature 160
Pressure - Maximum 150 psi
Valve Body Material Lead Free Copper Silicon Alloy
