WATLF1170M2US1

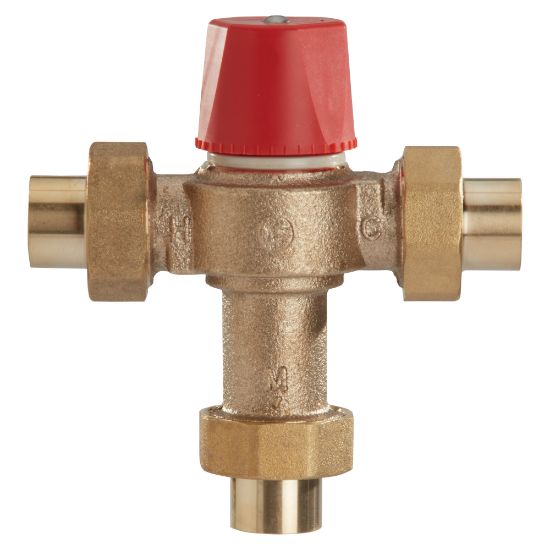

Watts LF1170M2-US 1" Lead Free Hot Water Temperature Control Valve, Solder Union End Connections, Adjustable Out 90-160 F

Manufacturer: Watts

$0.00

Qty:

Hot Water Temperature Control Valve, LF1170 Series, 5-13/16 in. Length, 5-7/8 in. Height, Material: Cast Copper Silicon Alloy, End Connection 1: Solder, Flow Rate: 0.5 gpm, Lead Law Compliant: Yes, Maximum Temperature: 120 - 200F Hot, 40 - 85F Cold Inlet, 90 - 160F Outlet, 5F Hot Water Inlet to Outlet Differential, 200F Maximum, Pressure - Maximum: 150 psi, 30 psi Static, Specifications - ASSE Standards: ASSE 1017, Valve Size: 1 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-13/16 in.
Height	5-7/8 po
Material	Cast Copper Silicon Alloy
End Connection 1	Solder
Flow Rate	0.5 gpm
Lead Law Compliant	Yes
Maximum Temperature	120 - 200F Hot, 40 - 85F Cold Inlet, 90 - 160F Outlet, 5F Hot Water Inlet to Outlet Differential, 200F Maximum
Pressure - Maximum	150 psi, 30 psi Static
Specifications - ASSE Standards	ASSE 1017
Valve Size	1 in.
