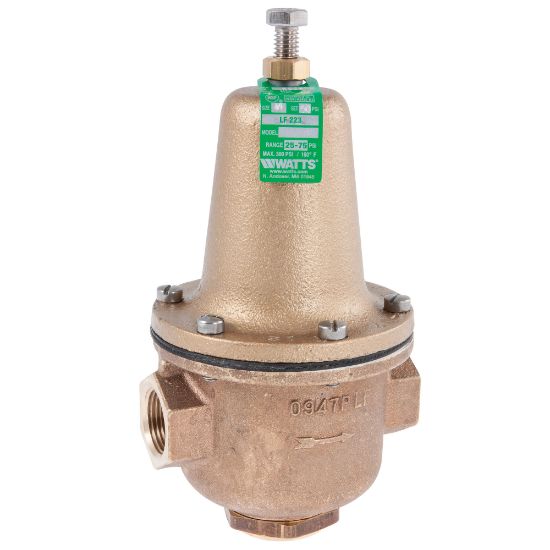

Picture of LF223 LLC 3/4" WTR PRES REDUC VLV

LF223 LLC 3/4" WTR PRES REDUC VLV

Watts 0298514 LF223 Series Lead Free 3/4 in. FNPT x FNPT Cast Copper Silicon Alloy and Brass High Capacity Water Pressure Reducing Valve
Manufacturer: Watts
$0.00
This 3/4 in. high capacity lead free water pressure reducing valve is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free cast copper silicon alloy body construction, NPT threaded female inlet and outlet connections, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The adjustable reduced pressure range is 25 to 75 psi (172 to 517 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Height 8-1/4 in.
Lead Law Compliant Yes
Length 4-1/4 in.
Material Brass
Maximum Temperature 160
Pressure - Maximum 75 psi
Recommended Valve Application Water
Size 3/4 in.
Specifications - ANSI ANSI A112.26
Specifications - ASSE Standards ASSE 1003
Specifications - CSA Certified CSA B356
Valve Seat Material Stainless Steel
Valve Size 3/4 in.
Valve Type Pressure Reducing Valve
Product Type Pressure Reducing & ACV Valves
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Style Name LF223 Series
Weight 4.53 lb
Width 4 in.
Origin USA
Valve Body Material Cast Copper Silicon Alloy
Minimum Temperature 33
Valve Disc Material EPDM
Valve Body Style Standard
