LF25AUBDUPEXXPEX LLC 3/4"WTR PRES RED VV

Watts 0125287 LF25AUB-Z3 Series Lead Free 3/4 in. Union Pe x FNPT Copper Silicon Alloy 300 psi Water Pressure Reducing Valve Z
Manufacturer: Watts
$0.00

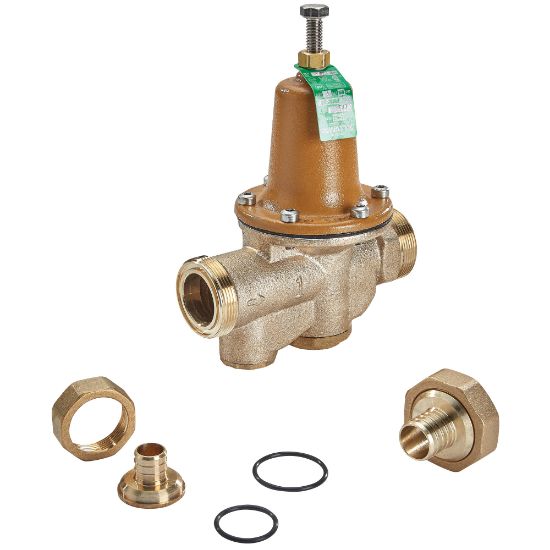

This 3/4 in. lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. This assembly consists of a lead free brass body, replaceable seat module, double union crimp inlet and outlet for PEX tubing, and a bypass feature to control thermal expansion pressure. The reduced pressure rating is set at 50 psi (345 kPa). The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Union Pe x FNPT
End Connection 1 Union Pe
End Connection 2 FNPT
Height 7 in.
Lead Law Compliant Yes
Length 3-1/8 in.
Material Cast Copper Silicon Alloy;Brass
Maximum Temperature 180
Pressure - Maximum 300 psi
Recommended Valve Application Water
Specifications - ANSI ANSI A112.26.2
Specifications - ASSE Standards ASSE 1003
Specifications - CSA Certified CSA B356
Specifications - IAPMO Listed Yes
Specifications - NSF Certified Yes
Valve Disc Material EPDM
Valve Seat Material Engineered Polymer (10% Glass Filled Noryl)
Valve Size 3/4 in.
Valve Type Reducing Valve
Width 6-1/2 in.
Product Type Pressure Reducing & ACV Valves
Style Name LF25AUB-Z3 Series
Origin USA
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Weight 3.54 lb
Minimum Temperature 33
Size 3/4 in.
Lead Law Compliance Level Yes
Valve Body Style Standard
Valve Body Material Lead Free Copper Silicon Alloy
