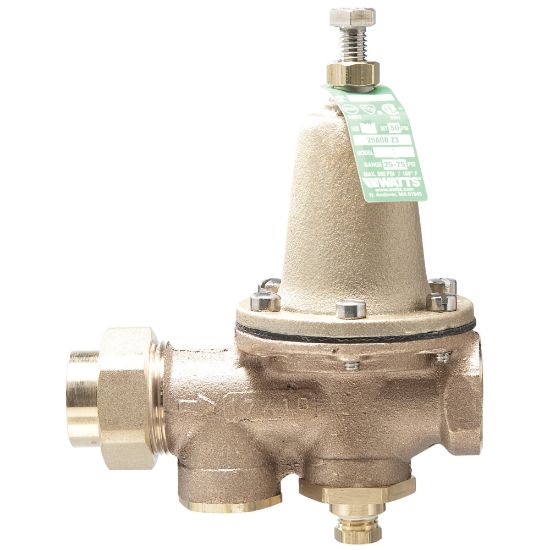

LF25AUB-G-Z3 LLC 1-1/4" WTR PRES RED VLV

Watts LF25AUB-G-Z3 1 1/4" Lead Free Water Pressure Reducing Valve, Npt Female, Ss Seat, Gauge Tapping, Adjustable 25-75 psi

Manufacturer: Watts

$0.00

Qty:

Pressure Reducing Valve, Model: LF25AUB-G-Z3, 8-3/4 in. Length, 3-5/8 in. Width, 11-1/8 in. Height, Material: Copper Silicon Alloy, End Connection 1: FNPT Union, End Connection 2: FNPT, Lead Law Compliant: Yes, Maximum Temperature: 33 - 160F, Pressure - Maximum: 25 - 75 psi, Recommended Valve Application: Water, Specifications - ANSI: ANSI A112.26.2, Specifications - ASSE Standards: ASSE 1003, Specifications - CSA Certified: CSA B356, Specifications - IAPMO Listed: Yes, Specifications - NSF Certified: Yes, EPDM Valve Disc, Replaceable Stainless Steel Valve Seat, Valve Size: 1-1/4 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	8-3/4 in.
Width	3-5/8 in.
Height	11-1/8 po
Material	Copper Silicon Alloy
End Connection 1	FNPT Union
End Connection 2	FNPT
Lead Law Compliant	Yes
Maximum Temperature	33 - 160F
Pressure - Maximum	25 - 75 psi
Recommended Valve Application	Water
Specifications - ANSI	ANSI A112.26.2
Specifications - ASSE Standards	ASSE 1003
Specifications - CSA Certified	CSA B356
Specifications - IAPMO Listed	Yes
Specifications - NSF Certified	Yes
Valve Disc Material	EPDM
Valve Seat Material	Replaceable Stainless Steel
Valve Size	1-1/4 in.
