LF25AUB-HP-Z3 LLC 1" WTR PRES REDUC VLV

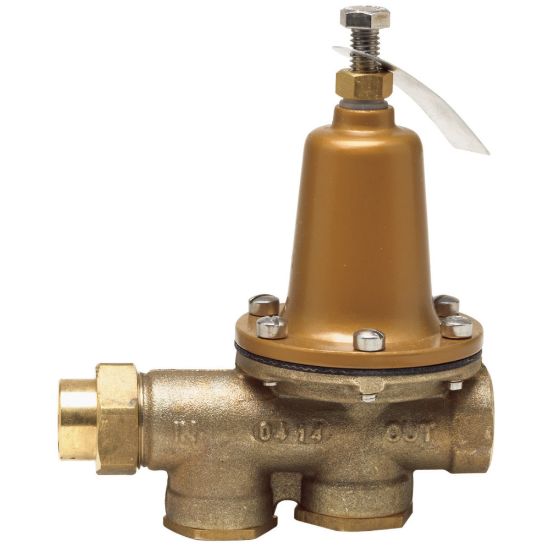

Watts 0009329 LF25AUB-Z3 Series Lead Free 1 in. FNPT x Union FNPT Copper Silicon Alloy Pressure Reducing Valve
Manufacturer: Watts
$0.00
This 1 in. lead free brass water pressure reducing valve for high pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). The high pressure range is 75 to 125 psi (518 to 863 kPa) with the standard setting at 90 psi (621 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
Lead Law Compliant Yes
Pressure - Maximum 125 psi
Size 1 in.
Valve Size 1 in.
Valve Type Pressure Reducing Valve
Product Type Pressure Reducing & ACV Valves
Fitting Size 1 1 in.
Fitting Sizes 1 in.
Height 8-1/4 in.
Length 6-3/4 in.
Style Name LF25AUB-Z3 Series
Weight 4.80 lb
Width 4 in.
Origin USA
End Connection FNPT x Union FNPT
End Connection 1 FNPT
End Connection 2 Union FNPT
Material Cast Copper Silicon Alloy;Brass
Minimum Temperature 33
Recommended Valve Application Water
Valve Disc Material EPDM
Application Commercial
Valve Body Style Standard
Valve Body Material Lead Free Copper Silicon Alloy
