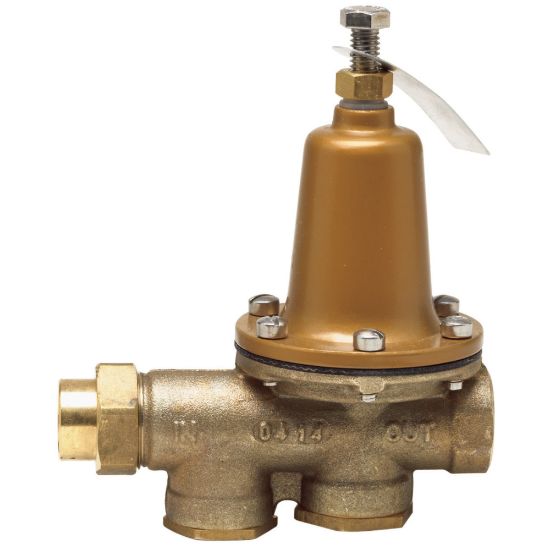

LF25AUB-HP-Z3 LLC 2" WTR PRES REDUC VLV

Watts 0009449 LF25AUB-Z3 Series Lead Free 2 in. FNPT x NPT Copper Silicon Alloy 125 psi Water Pressure Reducing Valve
Manufacturer: Watts
$0.00
This 2 in. lead free brass water pressure reducing valve for high pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). The high pressure range is 75 to 125 psi (518 to 863 kPa) with the standard setting at 90 psi (621 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x NPT
End Connection 1 FNPT
End Connection 2 NPT
Height 14-1/2 in.
Lead Law Compliant Yes
Length 9-1/4 in.
Material Cast Copper Silicon Alloy;Brass
Maximum Temperature 160
Pressure - Maximum 125 psi
Recommended Valve Application Water
Size 2 in.
Specifications - ANSI ANSI A112.26.2
Specifications - ASSE Standards ASSE 1003
Specifications - CSA Certified CSA B356
Specifications - IAPMO Listed Yes
Specifications - NSF Certified Yes
Valve Disc Material EPDM
Valve Seat Material Stainless Steel
Valve Size 2 in.
Valve Type Pressure Reducing Valve
Width 4-3/4 in.
Product Type Pressure Reducing & ACV Valves
Style Name LF25AUB-Z3 Series
Weight 13.65 lb
Origin USA
Fitting Size 1 2 in.
Fitting Sizes 2 in.
Minimum Temperature 33
Application Commercial;Residential
Valve Body Style Standard
Valve Body Material Lead Free Copper Silicon Alloy
