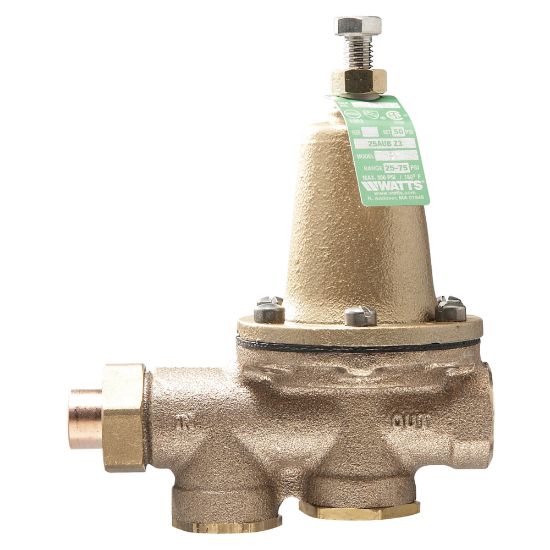

LF25AUBS LLC 3/4" WTR PRES REDUC VLV

Watts 0009282 LF25AUB-Z3 Series Lead Free 3/4 in. NPT x Socket Copper Silicon Alloy Pressure Reducing Valve
Manufacturer: Watts
$0.00
This 3/4 in. lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, a solder union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection NPT x Socket
End Connection 1 NPT
End Connection 2 Socket
Height 7 in.
Lead Law Compliant Yes
Length 3-1/8 in.
Material Cast Copper Silicon Alloy;Brass
Maximum Temperature 160
Pressure - Maximum 75 psi
Recommended Valve Application Water
Specifications - ANSI ANSI A112.26.2
Specifications - ASSE Standards ASSE 1003
Specifications - CSA Certified CSA B356
Specifications - IAPMO Listed Yes
Specifications - NSF Certified Yes
Valve Disc Material EPDM
Valve Seat Material Engineered Polymer (10% Glass Filled Noryl)
Valve Size 3/4 in.
Valve Type Pressure Reducing Valve
Width 5-1/2 in.
Product Type Pressure Reducing & ACV Valves
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Style Name LF25AUB-Z3 Series
Weight 2.92 lb
Origin USA
Minimum Temperature 33
Application Commercial
Valve Body Style Standard
Valve Body Material Lead Free Copper Silicon Alloy
