LF263A LLC 3/8" 10-125 3WWTR PRES REGUL

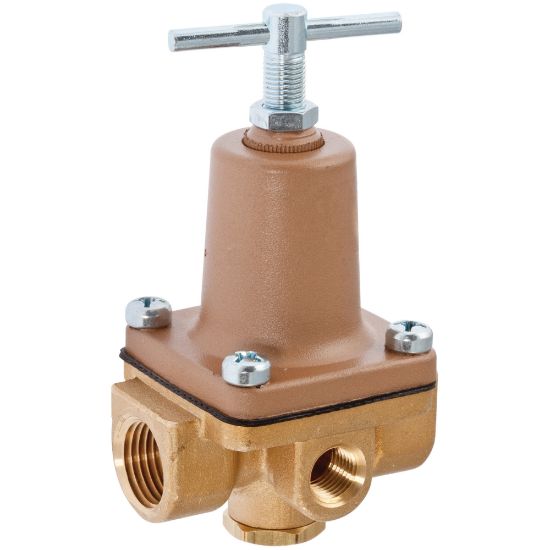

Watts 0009828 LF263A Series Lead Free 3/8 in. 3-Way Small Water Pressure Regulator, 10-125 psi
Manufacturer: Watts
$0.00
This 3/8 IN lead free small water pressure regulator is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing, ice cube machines, paint spraying equipment, drinking fountains, humidifiers, and other small process applications. It consists of a lead free brass body, adjusting tee handle, NPT threaded female connections, three-way low water pressure gauge port, Buna-N stainless steel disc, aluminum spring cage, and a reinforced Buna-N diaphragm. The reduced water pressure range is 10 to 125 psi (0.7 to 8.6 bar). It is factory set at 25 psi (1.7 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Pressure Reducing & ACV Valves
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Fitting Size 1 3/8 in.
Fitting Sizes 3/8 in.
Lead Law Compliant Yes
Material Brass
Pressure - Maximum 125 psi
Recommended Valve Application Water
Valve Disc Material Buna-N
Valve Type Pressure Regulator Valve
Valve Body Style 3-way
Valve Body Material Brass
