WATLF340X81501K

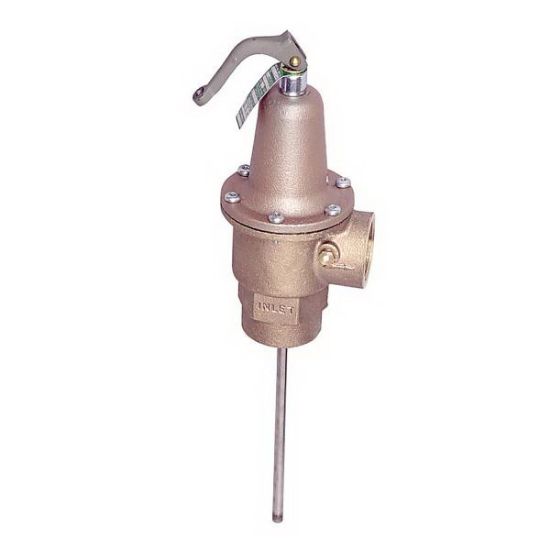

Watts 0121605 Lead Free Bronze LF340X Automatic Reseating Temperature and Pressure Relief Valve, 1-1/2 in., MNPT x FNPT, 150 psi
Manufacturer: Watts
$0.00
Automatic Reseating Temperature and Pressure Relief Valve, LF340X Series, Model: LF340X-8, 4-1/2 in. Width, 9-3/4 in. Height, Material: Bronze, End Connection 1: MNPT, End Connection 2: FNPT, Fitting Size 2: 1-1/2 in., Lead Law Compliant: Yes, Maximum Temperature: 210F, Pressure - Maximum: 150 psi, Recommended Valve Application: Water, Steam, Specifications - ANSI: ANSI Z21.22, Specifications - ASME: ASME Section IV, Valve Size: 1-1/2 in., 1150000 btu/hr CSA Temperature Steam Rating, ASME Pressure Steam Rating: 6379000 btu/hr
Products specifications
products.specs.attributename products.specs.attributevalue
Width 4-1/2 in.
Height 9-3/4 in.
Material Bronze
ASME Pressure Steam Rating 6379000 btu/hr
CSA Temperature Steam Rating 1150000 btu/hr
End Connection 1 MNPT
End Connection 2 FNPT
Fitting Size 2 1-1/2 in.
Lead Law Compliant Yes
Maximum Temperature 210F
Pressure - Maximum 150 psi
Recommended Valve Application Water, Steam
Specifications - ANSI ANSI Z21.22
Specifications - ASME ASME Section IV
Valve Size 1-1/2 in.
