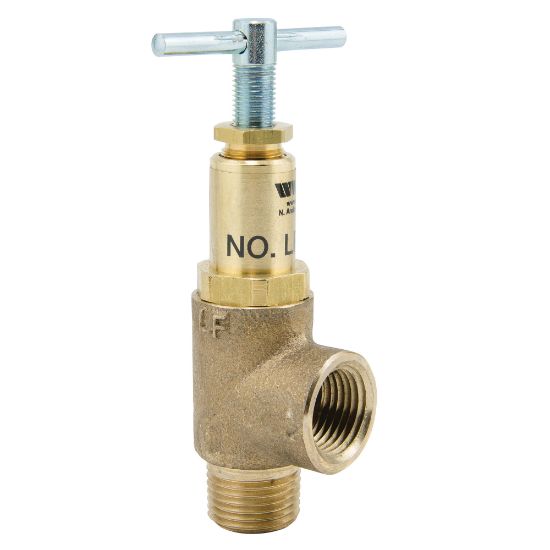

LF5300A LLC 1/2" BYPASS CONTROL RLF VLV

Watts 0121627 LF5300A Series Lead Free 1/2 in. 0 psi to 250 psi Poppet Type Bypass Control Relief Valve
Manufacturer: Watts
$0.00
This lead free 1/2 in. bypass control relief valve is used in commercial, residential, and in residential applications to regulate liquid pressure as supplied by a positive pressure pump. This is a poppet-type compact valve that protects equipment by opening at the desired setting to allow excess volume to be by-passed back to the source. It consist of a lead free brass body construction with NPT male inlet and NPT female outlet, PTFE disc, spring and a tee handle. The pressure range is 0 to 250 psi (zero to 17.23 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
Lead Law Compliant Yes
Pressure - Maximum 250 psi
Size 1/2 in.
Valve Size 1/2 in.
Product Type Relief Valves
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Height 5 in.
Length 2-1/4 in.
Style Name LF5300A Series
Valve Type Poppet Type Bypass Control
Weight 0.59 lb
Width 2-1/4 in.
Origin USA
Valve Body Material Brass
End Connection FNPT x MNPT
End Connection 1 FNPT
End Connection 2 MNPT
Maximum Temperature 180
Application Commercial;Residential
