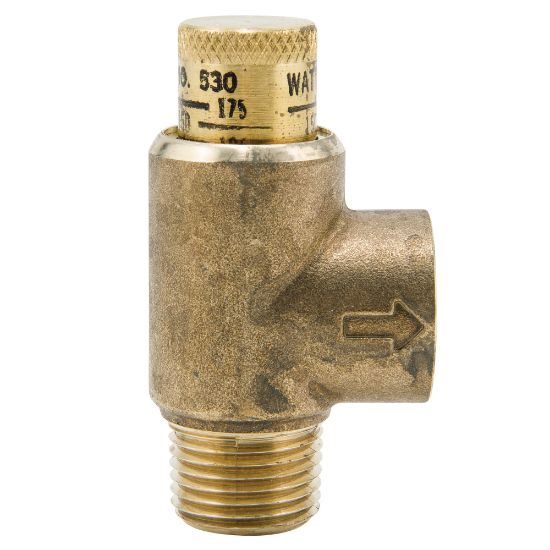

LF530-C LLC 3/4" PRESSURE RELIEF VLV

Watts 0556036 LF530C Series Lead Free 3/4 in. FNPT x MNPT 50 psi to 175 psi Brass Poppet Type Calibrated Pressure Relief Valve
Manufacturer: Watts
$0.00
This 3/4 in. lead free calibrated pressure relief valve is designed for use only as protection from the build up of excessive pressure in systems containing water, oil or air. It features a lead free brass body with 3/4 in. NPT male inlet and 1/2 in. NPT female (drain) outlet, stainless steel spring, lead free brass bonnet and a Buna-N disc and O-ring. The pressure relief spring adjustable range is 100 to 300 psi (6.9 to 20.7 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
Lead Law Compliant Yes
Material Brass
Pressure - Maximum 175 psi
Size 3/4 in.
Valve Size 3/4 in.
Product Type Relief Valves
End Connection FNPT x MNPT
End Connection 1 FNPT
End Connection 2 MNPT
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Height 3-3/4 in.
Length 2-1/5 in.
Style Name LF530C Series
Valve Type Pressure Relief Valve
Weight 0.42 lb
Width 1-3/7 in.
Origin USA
Valve Body Material Brass
Maximum Temperature 180
