WATLF909M1QT2

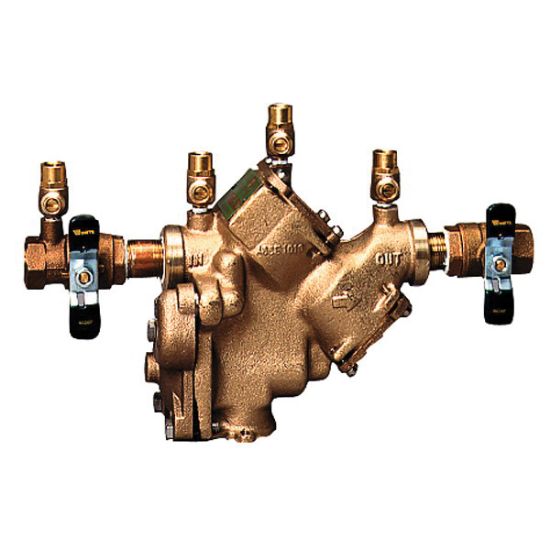

Watts LF909M1-QT 2" Lead Free Silicon Bronze Reduced Pressure Zone Assembly, Quarter Turn Shutoff Valves

Manufacturer: Watts

$0.00

Qty:

Reduced Pressure Zone Assembly, LF909 Series, Model: LF909M1-QT, 19-1/2 in. Length, 5-1/4 in. Width, 11-5/8 in. Height, Material: Cast Copper Silicon Alloy, End Connection 1: MNPT, End Connection 2: MNPT, Lead Law Compliant: Yes, Maximum Temperature: 140F, Pressure - Maximum: 175 psi, Recommended Valve Application: Water, Air, Specifications - ASSE Standards: ASSE 1013, Specifications - AWWA: AWWA C-511-92, Specifications - CSA Certified: CSA B64.4, Celcon Valve Seat, Valve Size: 2 in., Ball Valve, 7.5 ft/sec Capacity

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	19-1/2 in.
Width	5-1/4 in.
Height	11-5/8 po
Material	Cast Copper Silicon Alloy
Capacity	7.5 ft/sec
End Connection 1	MNPT
End Connection 2	MNPT
Lead Law Compliant	Yes
Maximum Temperature	140F
Pressure - Maximum	175 psi
Recommended Valve Application	Water, Air
Specifications - ASSE Standards	ASSE 1013
Specifications - AWWA	AWWA C-511-92
Specifications - CSA Certified	CSA B64.4
Valve Seat Material	Celcon
Valve Size	2 in.
Valve Type	Ball
